The TSR ring is a triple swivel model with two pivots. It can be used for smooth tilting, turning and flipping, The optimised design prevents any damage to the sling and load while the ring is swivelling and ensures perfect alignment with the sling. However, the TSR triple swivel ring is not recommended for lengthy rotations of full loads.
It consists of a steel ring that has a rotating range of 360°.
- Maximal articulation
- Move the hook away from the load to lift
- Optimal hook position
- Marking: According to standard, CE-marked
- Temperature range: -20°C up to + 200°C
- Standard: EN 1677-1

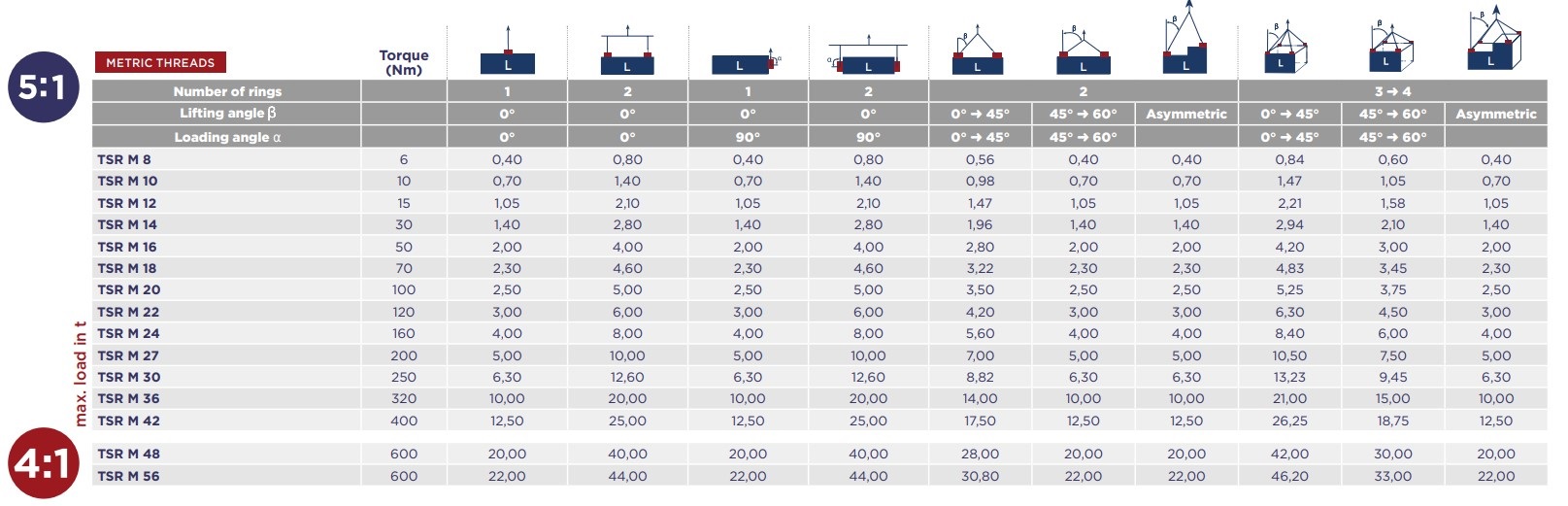

- Note: M48 - M56 have SF 4:1
- Safety factor: 5:1
