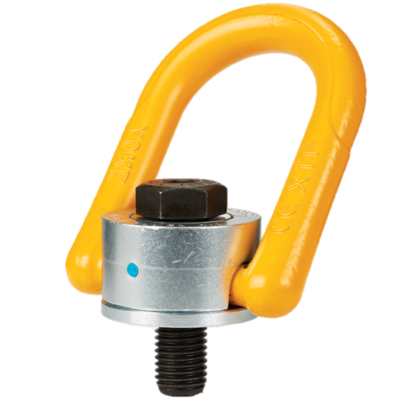

Swivel Hoist Ring 8-231

  • Rotates through 360° and pivot 180°, and simultaneously allows lifting from any direction.
  • Manufactured from forged alloy steel, quenched and tempered.
  • Load rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolt are Metric thread (ASME / ANSI B18.3.1M).
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 1.5 times the WLL.
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
  • Quick and simple assembly, just a tapped hole is required.
  • Material: Forged alloy steel, quenched and tempered.
  • Marking: According to standard, CE-marked, WLL, size, steel quality, manufacturer ID and traceability.
  • Temperature range: -40° up to +200°C (without reduction in WLL).
  • Finish: Painted.
  • Standard: EN 1677-1
  • Note: Built-in RFID/NFC chip
  • Safety factor: 4:1
  • Grade: 10
Swivel Hoist Ring 8-231 Swivel Hoist Ring 8-231
Select a row from the table below, then click the add to quote button
Part Code WLL
ton		 Torque
Nm		 Thread
M
mm		 Thread length (E)
mm		 Pitch DIN13 A
mm		 B
mm		 C
mm		 D
mm		 F
mm		 G
mm		 H
mm		 R
mm		 S
mm		 SW
mm		 Weight
kg		 CAD
11.428-231-005 0.5 30 M 8 12 1,25 33 42 28 11 80 58 23 17 6 13 0.3
11.428-231-007 0.7 60 M 10 15 1,5 33 41 29 11 80 58 23 17 6 17 0.3
11.428-231-010 1 100 M 12 20 1,75 33 40 31 11 80 58 23 17 8 19 0.3
11.428-231-015 1.5 120 M 14 21 2 50 56 45 17 117 90 36 27 10 22 0.9
11.428-231-020 2 150 M 16 24 2 50 54 46 17 117 90 36 27 10 24 0.9
11.428-231-025 2.5 200 M 18 26 2,5 65 78 57 20 153 108 44 34 12 30 1.9
11.428-231-030 3 250 M 20 30 2,5 50 52 49 17 117 90 36 27 12 30 1
11.428-231-050 5 400 M 24 36 3 72 81 59 25 163 125 44 37 14 36 2.6
11.428-231-056 5.6 400 M 27 38 3 87 86 79 30 204 148 62 46 17 41 4.9
11.428-231-078 7.8 500 M 30 48 3,5 87 94 81 30 204 148 62 46 17 46 5
11.428-231-125 12.5 1,000 M 36 54 4 110 112 98 36 247 188 75 57 22 55 9.6
11.428-231-156 15.6 1,500 M 42 63 4,5 110 101 108 36 247 188 83 57 24 65 10.9
11.428-231-200 20 2,000 M 48 72 5 110 97 113 36 248 188 83 57 27 75 11.6
11.428-231-220 22 2,100 M 56 84 5,5 123 116 121 36 274 202 91 64 27 85 15
11.428-231-225 22.5 2,200 M 64 100 6 123 111 126 36 274 202 91 64 32 95 16.3

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
Lifting method Lifting Chart 1 Lifting Chart 2 Lifting Chart 3 Lifting Chart 4 Lifting Chart 5

 Lifting Chart 7

 Lifting Chart 6
Lifting Chart 8
No of legs
1
2
1
2
2
2
3-4
3-4
2
3-4
Angle of
indication
0°
0°
90°
90°
0°-45°
45°-60°
0°-45°
45°-60°
unsymm.
unsymm.
Thread Load capacity (ton)
M 8
0,5
1
0,5
1
0,7
0,5
1,1
0,8
0,5
0,5
M 10
0,7
1,4
0,7
1,4
1
0,7
1,5
1,1
0,7
0,7
M 12
1
2
1
2
1,4
1
2,1
1,5
1
1
M 14
1,5
3
1,5
3
2,1
1,5
3,2
2,3
1,5
1,5
M 16
2
4
2
4
2,8
2
4,2
3
2
2
M 18
2,5
5
2,5
5
3,5
2,5
5,3
3,8
2,5
2,5
M 20
3
6
3
6
4,2
3
6,3
4,5
3
3
M 24
5
10
5
10
7
5
10,5
7,5
5
5
M 27
5,6
11,2
5,6
11,2
7,8
5,6
11,8
8,4
5,6
5,6
M 30
7,8
15,6
7,8
15,6
10,9
7,8
16,4
11,7
7,8
7,8
M 36
12,5
25
12,5
25
17,5
12,5
26,3
18,8
12,5
12,5
M 42
15,6
31,2
15,6
31,2
21,8
15,6
32,8
23,4
15,6
15,6
M 48
20
40
20
40
28
20
42
30
20
20
M 56
22
44
22
44
30,8
22
46,2
33
22
22
M 64
22,5
45
22,5
45
31,5
22,5
47,3
33,8
22,5
22,5
