Lifters, standard coupling Starcon

Starcon

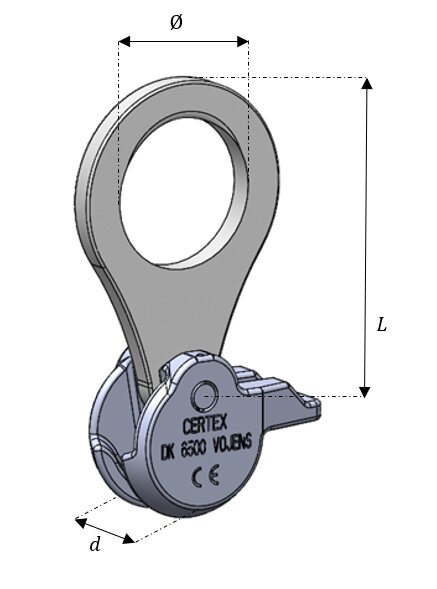

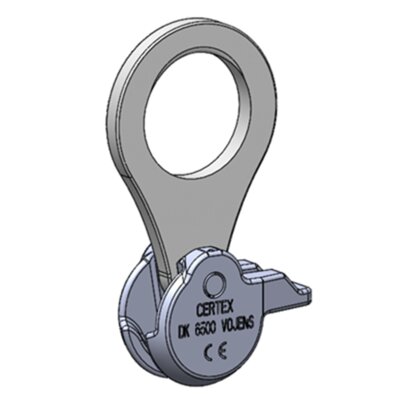

The Starcon Lifting Eye is a special steel component made for concrete casting. The sperical claw grips on to the head below the Starcon head anchor. The Starcon lifting eye has been tensile tested with 2 times of the safe load. All test results will be reported. Unique certifcates are made for each delivery.

  • Material: Special alloy steel
  • Marking: According to standard, Load group, STARCON, batch code, CE
  • Temperature range: 200°C
  • Finish: Electrogalvanized (yellow)
  • Standard: CEN/TR 15728 - VDI/BV-BS 6205
  • Safety factor: 4:1
