Lifting of horizontal plates or sheets (individual or bundles), circular plates or fabricated assemblies.
Accessories equipped with a tip up lever ensuring the clamping of the load.

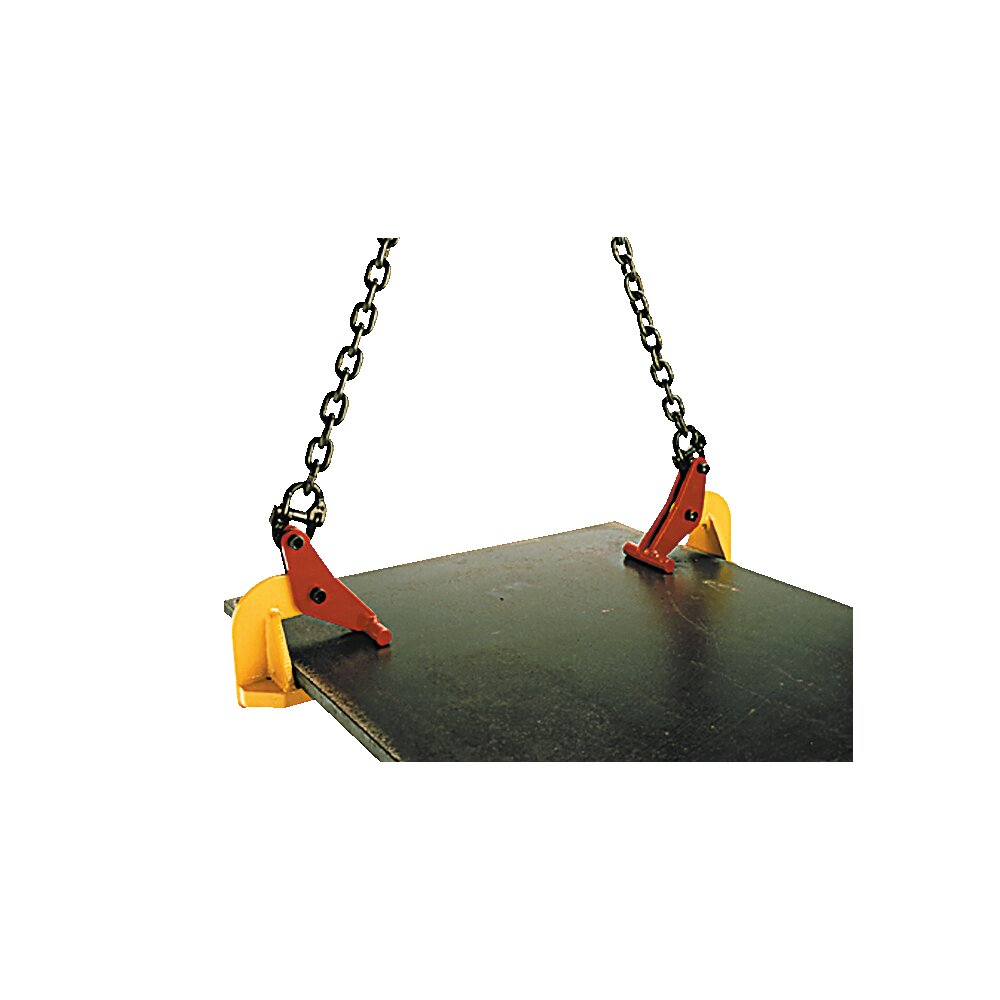

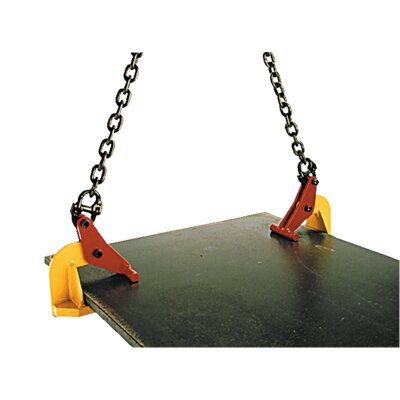

Use in pairs for lifting horizontal plates or sheet metals, individual or in bundles:
- 1 pair with a 2-legged sling

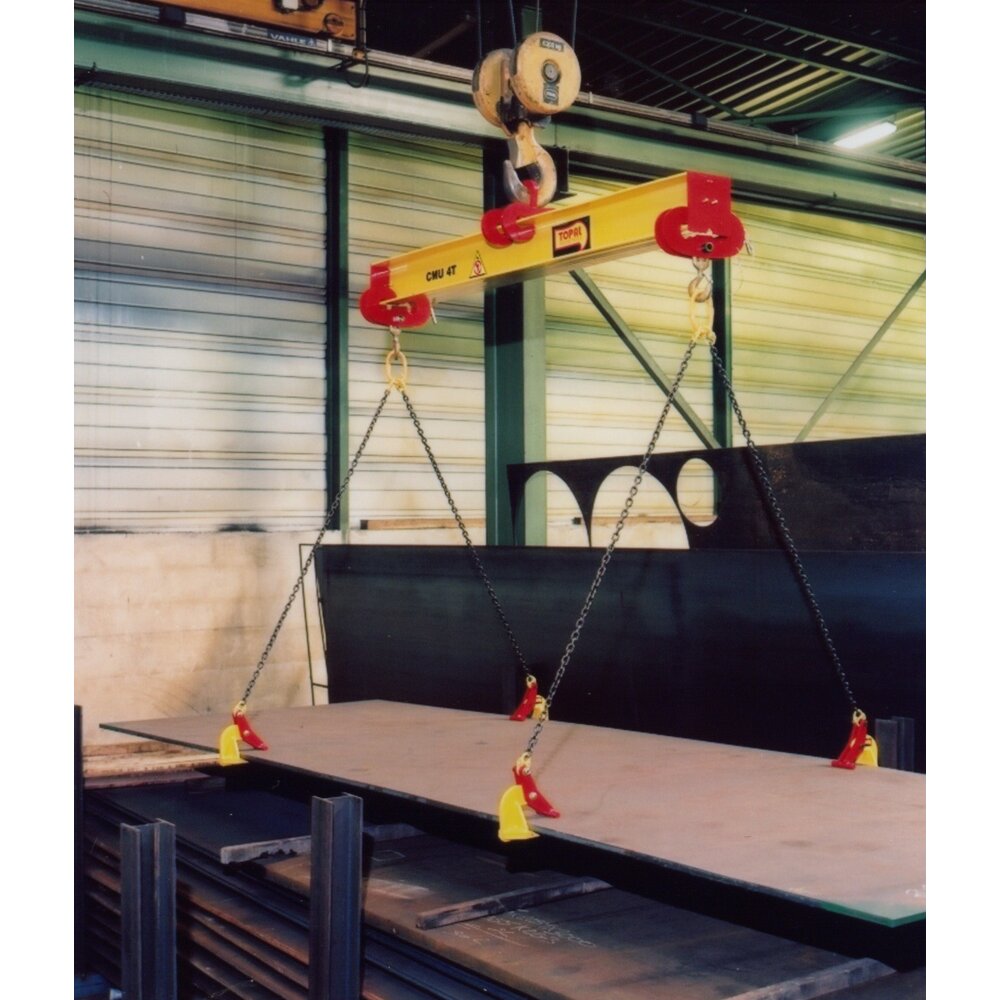

- Several pairs with 2-legged slings and lifting beam.
- Use in 3s with a 3-legged sling for lifting round sheet metals.
Fit the load into the clamps, making sure they are evenly distributed onto the piece to be lifted. Lifting ensures the clamps’
locking. Clamping is proportional to the load lifted, thus avoiding an excessive marking.
Lifting Plate Clamp TLH fulfill the Machinery Directive 2006/42/EC.
- Marking: CE-marked
- Temperature range: -20° up to +80°C
- Finish: Hot epoxy coating
- Note: To be used by pair!
- Warning: Never lift people with this equipment !
