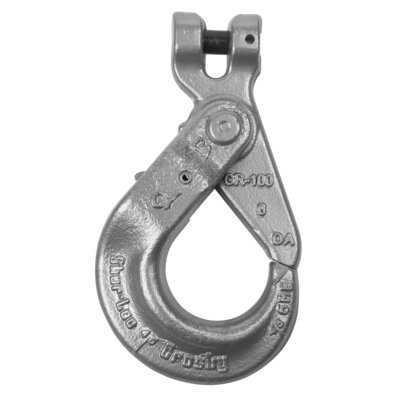

Clevis Hook Crosby S-1317

Home / PRODUCTS / CHAINS / CHAIN ACCESSORIES / Accessories - Grade 80/100 Platinum / Clevis Hook Crosby S-1317

25% stronger than Grade 80
Individually Proof tested to 2-1/2 times the Working Load Limit with certification.
Recessed trigger design is flush with the hook body, protecting the trigger from potential damage.
Easy to operate with enlarged thumb access.
Positive Lock Latch is Self-Locking when hook is loaded.

Material: Forged alloy steel, quenched and Tempered.
Warning: Not heat-treated

Safety factor: 4:1
Grade: 10

Select a row from the table below, then click the add to quote button

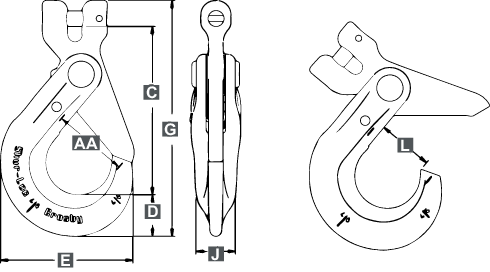

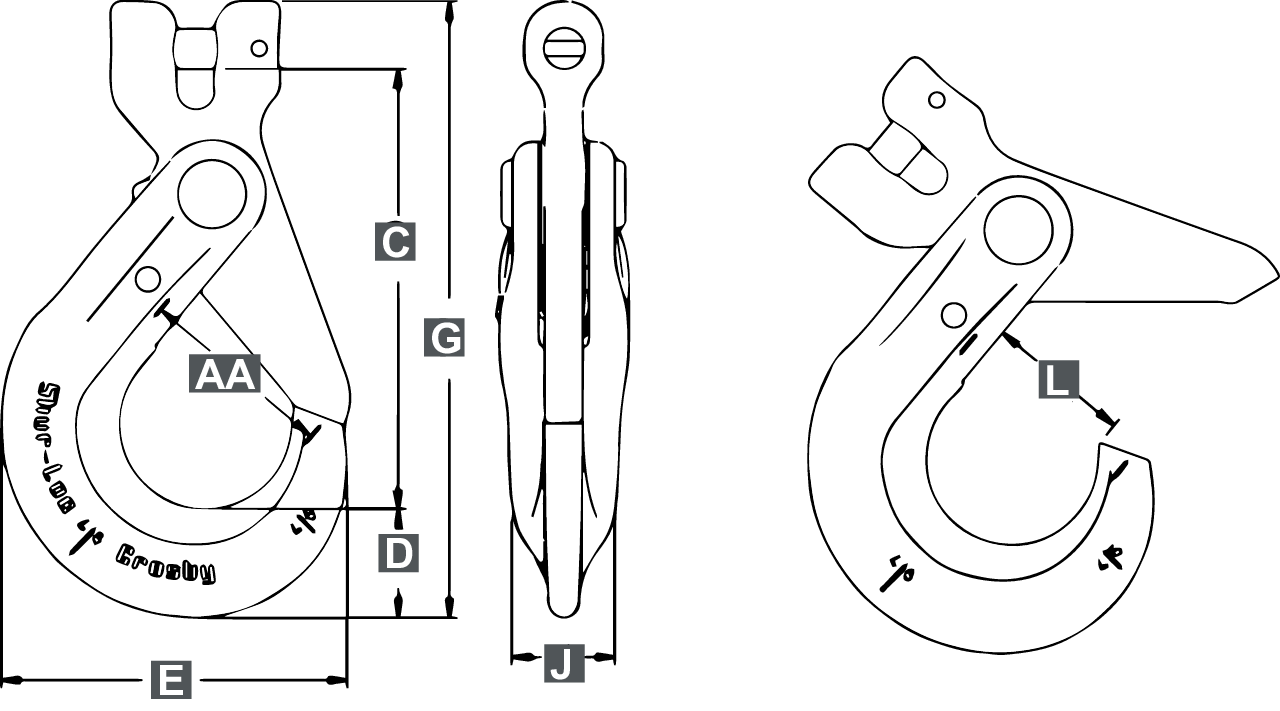

Part Code	WLL ton	Chain mm	C mm	D mm	E mm	G mm	J mm	L mm	AA mm	Weight kg	CAD
166067	1,5	6	87,4	20,1	66	121	16,0	29	38,1	0,35
100524	2	7	114	27,9	89	159	20,6	35,1	51	0,82
155448	2,6	8	114	27,9	89	159	20,6	35,1	51	0,82	-
154462	4	10	140	29,7	112	192	24,1	46,5	63,5	1,66	-
155508	6,8	13	173	42,4	139	242	29,5	56,4	76,2	3,08	-
155894	10,3	16	209	51,8	167	295	38,1	67,3	89	5,4
11.161029071	16	18-20	239	56,4	197	336	51,6	89,4		6,8	-
11.161029080	20	22	283	62,2	222	392	55,9	97,3		12,7	-
11.161029089	27,1	26	319	81,5	251	468	68,1	104		22,5	-
