Crosby

General: The use of A-1338 Cradle Grab Hook will allow 100 percent of the chain sling capacity. When used to hook back to chain leg to form a choker, the angle of the choke must be 120
degrees or greater. When used as a chain shortener, minimize twist of chain and ensure chain is fully engaged in hook.

Suitable for use with Grade 100 and Grade 80 chain.

  • Material: Forged alloy steel - Quenched and tempered.
  • Marking: Code and grade.
  • Safety factor: 4
  • Grade: 10

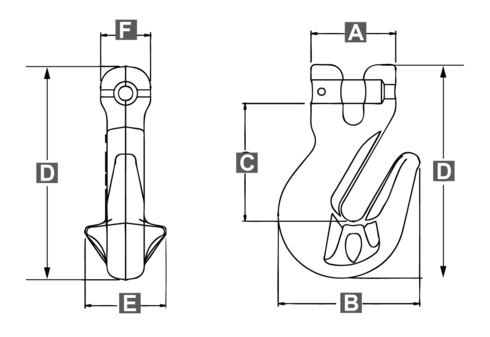

Product Picture 2

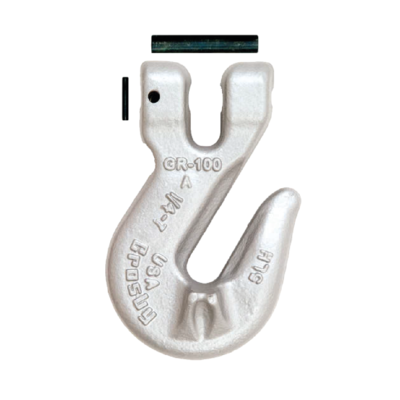

Product Picture 1
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
chain Ø
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
Weight
kg
CAD
11.211049417 2 7 43,7 64,5 55,9 98,5 38,1 22,4 0.45
11.211049426 2.6 8 43,7 64,5 55,4 98,5 38,1 22,4 0.45
11.211049435 4 10 47,0 78,5 65,5 119 46,5 27,7 0.82
11.211049444 6.8 13 60,7 97,3 83,3 149 57,2 36,1 1.78
11.211049453 10.3 16 67,8 115 97,8 179 74,5 44,5 3.18








Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
