• Ordinary right hand lay
  • Ordinary left hand lay
  • Stainless

Stainless steel wire rope.
Design: Cross lay right-handed, alternative design on request.

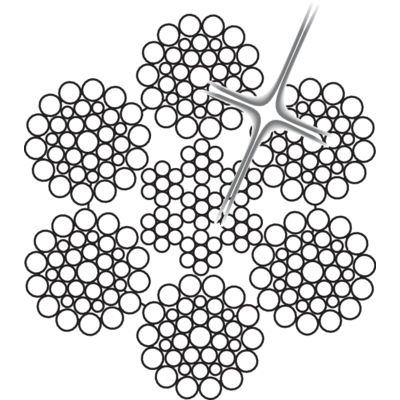

  • Rope construction: 6x36 IWRC.
  • Material: AISI 316/1570 N/mm²
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Min. breaking force
kN
1570 N/mm²
Weight
kg/100m
01.S10265080D 8 36,6 27
01.S10265100D 10 56,9 42
01.S10265120D 12 80,6 60,2
01.S10265130D 13 94,8 70,7
01.S10265140D 14 109 82
01.S10265150D 15 125,8 94,5
01.S10265160D 16 142 107
01.S10265180D 18 180 135
01.S10265200D 20 221 167
01.S10265240D 24 321 241
