Thimble Crosby G-414, Extra heavy

Crosby

General:
The use of the G-414 extra heavy thimbles for your wirerope slings ensures a greater protection against wear of the wire rope and deformation of the wire rope eye.

Features:

  • Longer service life.
  • Material: Steel
  • Marking: According to standard
  • Finish: Hot-dip galvanised
  • Standard: EN 13411-1
Crosby G-414 Extra Heavy Wire Rope Thimbles
Crosby G-414 Extra Heavy Wire Rope Thimbles

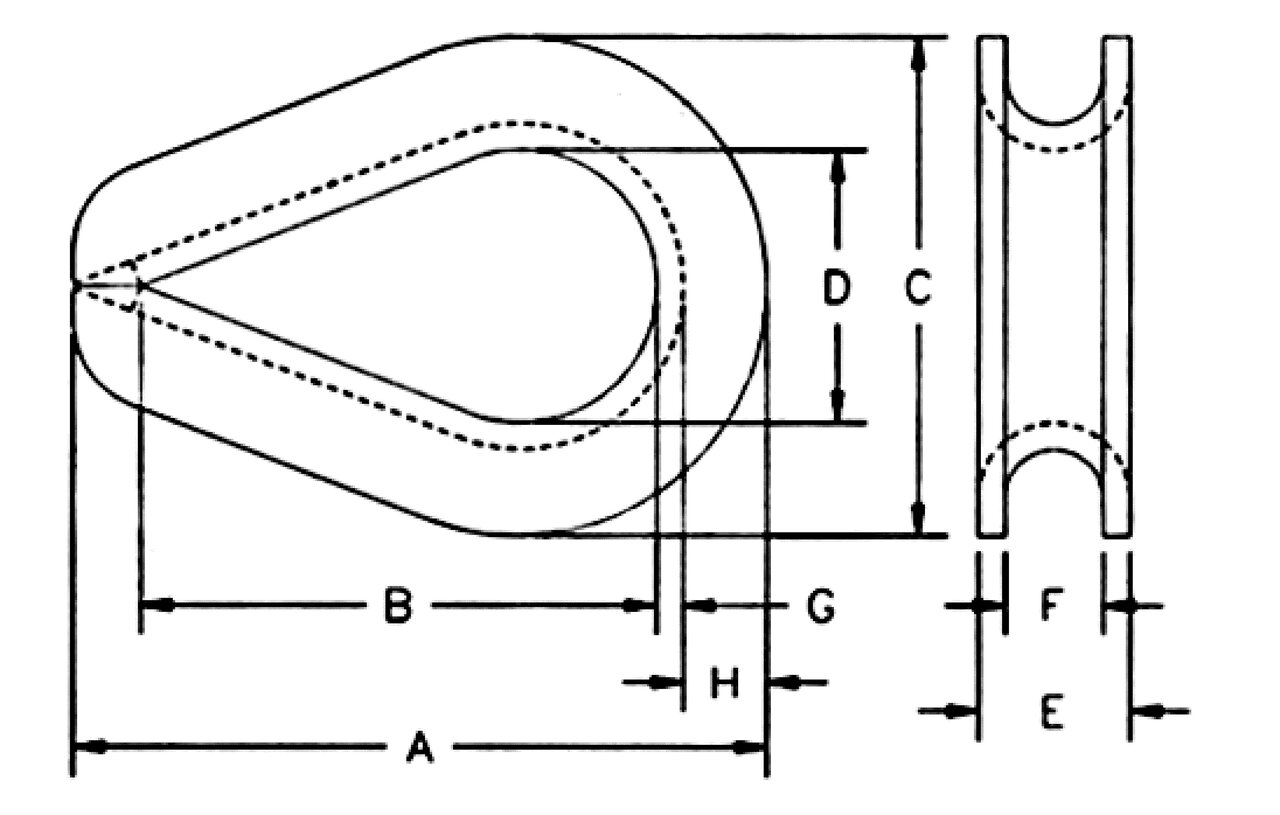

Crosby G-414 Extra Heavy Wire Rope Thimbles measurements
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm		 A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 G
mm		 H
mm		 Weight
kg/100pc		 CAD
11487 6-7 55,5 41,4 38,1 22,4 11,2 7,1 1,5 5,85 3 -
11481 8 63,5 47,8 46 26,9 14,0 8,65 2,05 7,1 5,35 -
11486 9-10 73,0 54,0 54 28,7 16,8 10,4 2,8 8,65 9,8 -
50155 11-12 82,5 60,5 60,5 31,8 18,8 11,9 3,3 9,65 15,7 -
14120 13-15 92,0 70,0 70,0 38,1 23,4 13,5 3,55 10,4 23,1 -
5858 16 108 82,5 79,5 44,5 26,2 16,8 4,05 12,7 34,3 -
11484 18-20 127 95,5 96,5 51 33,0 19,8 5,6 16,8 72 -
14122 22 140 108 108 57 37,3 23,9 5,6 19,1 81 -
8364 24-26 156 114 125 63,5 44,5 26,9 6,35 22,4 142 -
16454 28-32 178 130 149 73 47,8 33,3 6,35 28,7 181 -
15847 32-35 230 165 173 89 57,2 36,6 9,65 28,7 402 -
15848 35-38 229 159 181 89 66,5 39,6 12,7 28,7 587 -
108020 40 286 203 207 102 76,2 43,7 12,7 35,1 771 -
142973 44 310 229 216 114 77,7 46,7 12,7 33,3 805 -
104578 48-52 384 305 264 152 85,9 53,0 12,7 38,1 1 259 -
10.251037951 56 435 356 302 178 98,6 60,5 16,0 41,4 1 792 -
