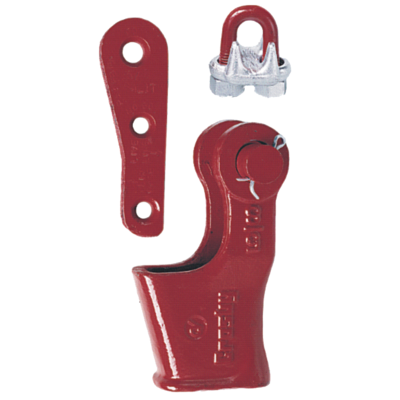

Wedge Socket Crosby S-421T

Home / PRODUCTS / WIRE ROPES / WIRE ROPE ACCESSORIES / Terminations / Wedge Socket Crosby S-421T

Features:

Secures the tail or “dead end” of the wire rope to the wedge, thus eliminates loss or “Punch out” of the wedge.
Eliminates the need for an extra piece of rope, and is easily installed.
The TERMINATOR™ wedge eliminates the potential breaking off of the tail due to fatigue.
The tail, which is secured by the base of the clip and the wedge, is left undeformed and available for reuse.
Incorporates Crosby’s patented QUIC-CHECK™ “Go” and “No-Go” feature cast into the wedge.
Utilises standard Crosby Red-U-Bolt wire rope clip.
Generates a minimum efficiency of 80% based on the catalogue breaking strength of the wire rope.
Pin diameter and jaw opening allows wedge and socket to be used in conjunction with open swage and spelter sockets.

Wedge sockets meet the performance requirements of Federal Specificatio RR-S-550F, Type C, except those provisions required of the contractor.

Material: Cast Steel.
Marking: According to standard, ID code and Manufacturer's symbol.
Finish: Painted.
Standard: EN 13411-6

Safety factor: 5:1

Wedge Socket Crosby S-421T

Select a row from the table below, then click the add to quote button

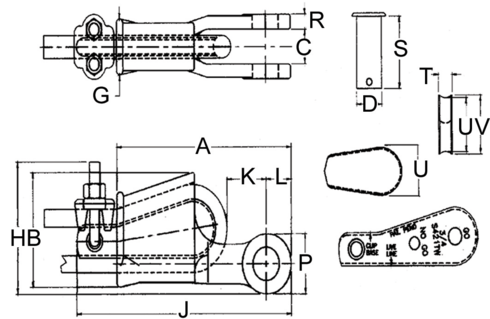

Part Code	Rope diameter mm	Finish	A mm	B mm	C +/- 2.29 mm	D mm	G mm	H mm	J* mm	K* mm	L mm	P mm	R mm	S mm	T mm	U mm	V mm	CAD
85	9-10	Painted	145	69,1	20,6	20,6	35,1	77,7	198	47,8	22,4	39,6	11,2	54,1	11,2	31,8	35,1	-
86	11-13	Painted	175	88,1	25,4	25,4	41,1	95,5	226	32,0	26,9	49,3	12,7	65,0	13,5	44,5	47,8	-
87	14-16	Painted	210	109	31,8	30,2	53,8	114	273	50,5	31,0	57,2	14,2	82,6	17,5	51,0	55,5	-
88	18-19	Painted	251	130	38,1	35,1	62,0	134	314	61,2	35,6	66,8	16,8	92,2	19,8	59,5	65,0	-
89	20-22	Painted	286	149	44,5	41,4	68,5	156	365	63,0	42,4	79,5	19,1	109	22,4	68,5	74,5	-
90	24-26	Painted	325	161	51,0	51,0	74,7	177	414	77,2	51,0	95,5	22,4	119	26,2	73,0	83,5	-
91	28	Painted	365	176	57,0	57,0	84,0	194	466	65,0	57,0	108	25,4	138	27,9	82,6	90,5	-
92	30-32	Painted	415	222	66,5	63,5	90,5	239	520	74,7	59,5	114	26,9	156	30,2	117	125	-

* Nominal NOTE: For intermediate wire rope sizes, use next larger size socket.
The S-423T Super TERMINATOR^TM wedge is designed to be assembled only into the Crosby S-421T TERMINATOR^TM socket body.
IMPORTANT: The S-423TW for sizes 14 mm through 28 mm will fit respective size standard Crosby S-421T basket. The 30-32 mm S-423TW will only fit the Crosby S-421T 30-32 mm basket marked with "TERMINATOR^TM"
