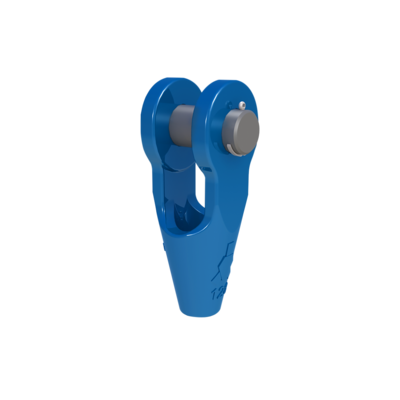

Quenched and tempered cast steel range steel wire rope sockets for embedment with cast compound with mechanical values (Charpy-V > 42 Joule /-20°C) for tough and low temperature use. For wire rope diameter 6 - 203 mm (1/4” - 8”).

2 surface finishes available:

  • Model OSS P : blue painted. (OSS 196 until OSS 100 only Hot dipped galvanized)
  • Model OSS PGAL : Hot dipped galvanized.

Features:

  • Pin securing by cotter pin.
  • All spelter sockets have a 100% efficiency.
  • Also avaiable with pin + bolt ( type OSS B )
  • Material: Quenched and tempered cast steel
  • Marking: CE-marked, Size, wire rope diameter and batch or serial number.
  • Temperature range: From - 40°C up to +110°C - 100% capacity range.
  • Finish: OSS P: blue painted - OSS PGAL : Hot dipped galvanized.
  • Note: For intermediate rope diameter select fittings with nearest following size.
  • Warning: Compare the spelter's and the wire rope's minimum breaking load.
Select a row from the table below, then click the add to quote button
Code Rope diameter
mm
MBL
ton
ton
Strand Ø
mm
A
mm
B
mm
C
mm
D
mm
Ø H
mm
Ø P
mm
T
mm
TL
mm
TB
mm
W
mm
Weight
kg
OSS196P 6-7 8 - 50 40 19 34 9 16 9 109 51 19 0,4
OSS197P 8-10 12 - 57 45 22 42 13 20 11 124 63 21 0,7
OSS198P 11-13 20 - 64 51 27 50 15 25 12 142 67 25 1
OSS199P 14-16 25 13 76 63 32 58 18 30 14 171 85 32 1,8
OSS100P 18-19 40 14-16 89 76 40 70 22 35 16 205 95 38 3
OSS104PGAL 20-22 55 18-19 101 89 45 80 25 41 19 235 110 44 4,6
OSS104P 20-22 55 18-19 101 89 45 80 25 41 19 235 110 44 4,6
OSS108P 23-26 75 20-22 114 101 60 104 29 51 22 275 128 51 8
OSS108PGAL 23-26 75 20-22 114 101 60 104 29 51 22 275 128 51 8
OSS111P 27-30 90 23-26 127 114 65 114 33 57 25 306 142 57 11
OSS111PGAL 27-30 90 23-26 127 114 65 114 33 57 25 306 142 57 11
OSS115PGAL 31-36 125 27-28 139 127 72 126 39 63 28 338 155 63 15
OSS115P 31-36 125 27-28 139 127 72 126 39 63 28 338 155 63 15
OSS118PGAL 37-39 150 30-32 152 162 80 142 42 70 30 394 177 76 22
OSS118P 37-39 150 30-32 152 162 80 142 42 70 30 394 177 76 22
OSS120P 40-42 170 33-35 165 165 88 156 45 76 33 418 187 76 27
OSS120PGAL 40-42 170 33-35 165 165 88 156 45 76 33 418 187 76 27
OSS125P 43-48 225 36-40 191 178 100 176 52 89 39 469 215 89 41
OSS125PGAL 43-48 225 36-40 191 178 100 176 52 89 39 469 215 89 41
OSS128P 49-54 280 42-45 216 228 108 194 59 95 45 552 244 101 60
OSS128PGAL 49-54 280 42-45 216 228 108 194 59 95 45 552 244 101 60
OSS130P 55-60 360 46-48 229 254 120 210 64 108 53 603 275 113 88
OSS130PGAL 55-60 360 46-48 229 254 120 210 64 108 53 603 275 113 88
OSS132P 61-68 425 50-54 248 273 133 236 75 121 60 654 300 127 118
OSS132PGAL 61-68 425 50-54 248 273 133 236 75 121 60 654 300 127 118
OSS135PGAL 69-75 460 56-62 279 279 138 240 81 127 73 696 335 133 155
OSS135P 69-75 460 56-62 279 279 138 240 81 127 73 696 335 133 155
OSS138P 76-80 560 64-67 305 286 146 252 88 133 76 737 355 146 186
OSS138PGAL 76-80 560 64-67 305 286 146 252 88 133 76 737 355 146 186
OSS140P 81-86 625 69-76 330 298 160 290 92 140 79 788 375 159 227
OSS140PGAL 81-86 625 69-76 330 298 160 290 92 140 79 788 375 159 227
OSS142PGAL 87-93 720 78-86 356 318 178 320 99 152 83 852 400 171 283
OSS142P 87-93 720 78-86 356 318 178 320 99 152 83 852 400 171 283
OSS144P 94-102 875 88-96 381 343 190 350 108 178 89 914 435 191 374
OSS144PGAL 94-102 875 88-96 381 343 190 350 108 178 89 914 435 191 374
OSS146PGAL 108-115 1 200 98-110 450 480 215 400 129 195 100 1 145 465 205 539
OSS146P 108-115 1 200 98-110 450 480 215 400 129 195 100 1 145 465 205 539
OSS150PGAL 120-130 1 400 112-124 500 500 250 450 147 220 110 1 250 525 225 761
OSS150P 120-130 1 400 112-124 500 500 250 450 147 220 110 1 250 525 225 761
OSS155P 135-140 1 600 125-132 540 497 263 480 157 240 140 1 300 590 230 1 067
OSS155PGAL 135-140 1 600 125-132 540 497 263 480 157 240 140 1 300 590 230 1 067
OSS160P 142-153 2 000 133-143 585 505 275 500 171 255 140 1 365 610 250 1 172
OSS160PGAL 142-153 2 000 133-143 585 505 275 500 171 255 140 1 365 610 250 1 172
OSS165P 154-165 2 220 144-154 630 530 300 550 185 275 150 1 460 640 260 1 441
OSS165PGAL 154-165 2 220 144-154 630 530 300 550 185 275 150 1 460 640 260 1 441
OSS170P 166-178 2 500 155-166 680 570 310 570 199 295 150 1 560 660 280 1 615
OSS170PGAL 166-178 2 500 155-166 680 570 310 570 199 295 150 1 560 660 280 1 615
OSS175P 180-191 2 800 167-179 725 600 325 600 213 310 155 1 650 689 300 1 907
OSS175PGAL 180-191 2 800 167-179 725 600 325 600 213 310 155 1 650 689 300 1 907
OSS180P 192-204 3 200 180-191 775 620 345 640 229 330 160 1 740 720 320 2 239
OSS180PGAL 192-204 3 200 180-191 775 620 345 640 229 330 160 1 740 720 320 2 239
