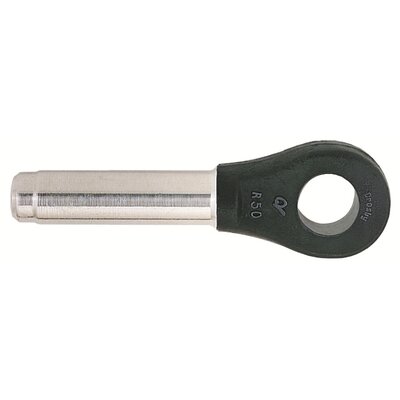

Closed Swage Socket Crosby S-502

Crosby

Sockets incorporate a reduced machined area of the shank which is the equivalent to the proper after swage dimension. Before swaging, this provides for an obvious visual difference in the shank diameter. After swaging, a uniform shank diameter is created allowing for a QUIC CHECK™ permanent visual inspection opportunity. Designed to quickly determine whether the socket has been through the swaging operation and assist in field inspections, it does not eliminate the need to perform standard production inspections which include gauging for the proper after swage dimensions or proof loading.
Hardness controlled by spheroidise annealing.
Swage socket terminations have an efficiency rating of 100% based on the catalogue strength of wire rope.

  • Material: Carbon Steel.
  • Marking: ID code and Manufacturer's symbol.
  • Finish: Ungalvanised.
  • Safety factor: 5:1
Crosby S502 Closed Swage Socket S-502
Crosby S502
S502
Select a row from the table below, then click the add to quote button

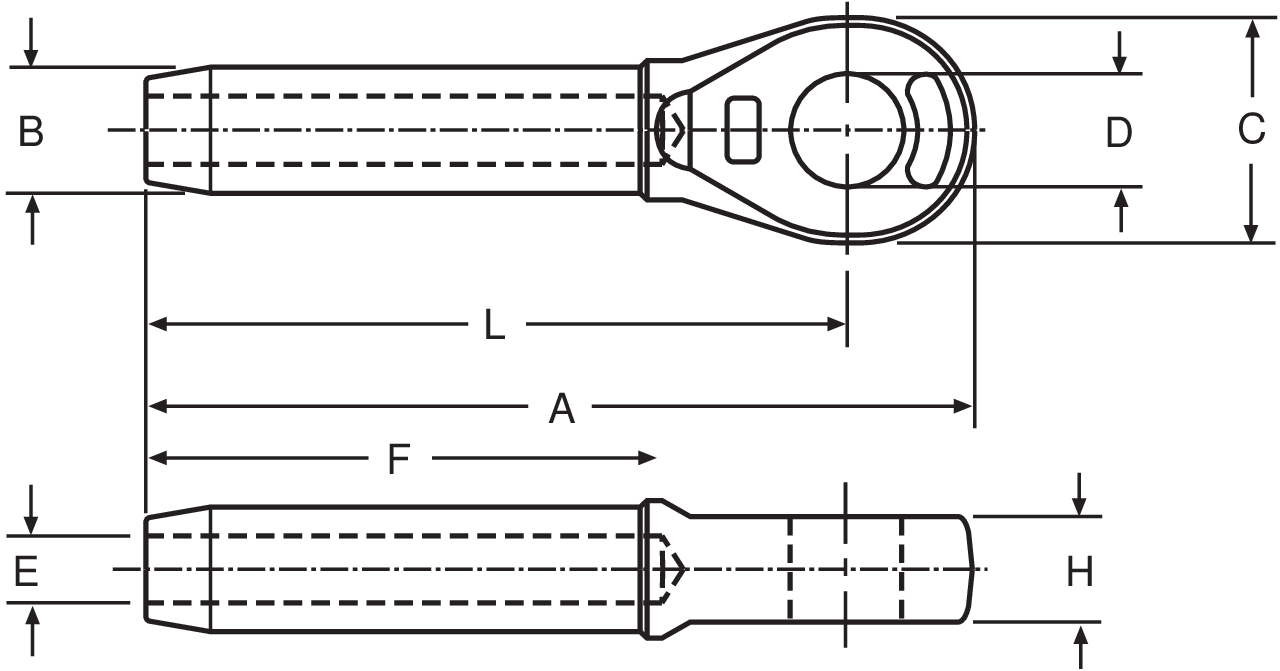

Part Code Rope diameter
mm		 Max. after swage dia.
mm		 A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 H
mm		 L
mm		 Weight
kg		 CAD
10.101039325 6 11,7 109 12,7 35,1 19,1 6,85 54 12,7 89,0 0,15 -
10.101039361 9-10 18,0 138 19,6 41,1 22,4 10,4 81 17 114 0,33 -
10.101039343 8 18,0 138 19,6 41,1 22,4 8,65 81 17 114 0,34 -
10.101039389 11-12 23,1 176 24,9 51,0 26,9 12,2 108 21,8 146 0,64 -
384 13 23,1 176 24,9 51,0 26,9 14,0 108 21,8 146 0,64 -
386 16 29,5 220 31,8 60,5 32,5 17 135 28,7 184 1,29 -
385 14 29,5 220 31,8 60,5 31,8 15,5 135 28,7 184 1,32 -
10.101039469 18-20 36,1 261 39,4 73 36,6 20,3 162 33,3 219 2,27 -
388 22 39,4 303 43,2 79 44 23,9 189 38,1 257 3,08 -
10.101039502 24-26 45,7 344 50,5 92 52,5 26,9 216 44,5 292 4,72 -
390 28 52,0 382 57,0 102 58,5 30,2 243 51 324 6,72 -
391 32 58,5 430 64,5 114 65 33,8 270 57 365 9,78 -
10.101039566 33-34 65,0 473 71 127 65 36,8 297 57 400 12,9 -
10.101039584 38-40 71,5 511 78 140 71,5 40,1 325 63 432 17,3 -
10.101039600 44 77,5 598 86 159 90,5 47,2 378 76 508 23,1 -
10.101042589 48-52 90,5 702 100 184 96,5 53,5 432 82,5 584 40,5 -
