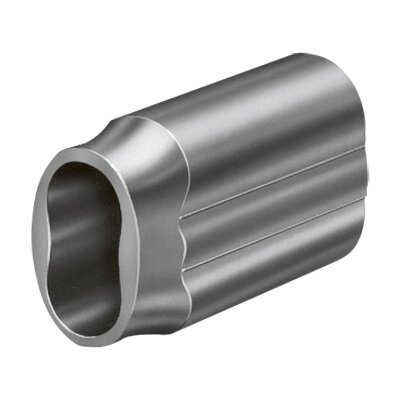

Talurit

The turnback ferrule system is easy to use. It is quick, safe and has proved itself to be totally reliable. The ferrules are thoroughly specified and very well defined for many different wire rope applications.

The ferrules can be used for single layer steel wire ropes with round strands up to fill factor 0,60 and grade 1960.

  • Material: Aluminum
  • Marking: According to standard
  • Standard: Talurit splicing system
    The ferrules do not correspond to standard EN 13411-3 but have been tested and verified by Talurit.
  • Note: See the manufacturer's product data sheet below for guidance on dimension selection.
Select a row from the table below, then click the add to quote button
Part Code Ferrule size Length
mm
14295 9 36
14296 10 41
143366 11 45
14297 12 50
42518 13 55
105042 14 59
42519 16 64
101552 18 73
101553 20 82
105429 22 91
42520 24 100
42521 26 109
42522 28 118
42523 30 127
42524 32 136
14298 34 146
14299 36 155
14300 38 164
10.01K40 40 173
10.01K42 42 182
10.01K44 44 191
Diameter after pressing, see instruction.
Length is after pressing.
