General:
- Standard Reeve Crane Blocks may be used on a wide variety of land based cranes such as mobile and crawler cranes. They are an excellent choice where frequent easy block change is not a required main feature, or lifting height is limited.
- Double sealed maintenance free roller bearings.
- Design Factor of Safety of 4:1.
- Forged high tensile steel DIN hooks.
- Ductile iron sheaves, featuring graphite lubricated groove.
- High impact resistant side plates.
- Operational temperature range -40 up to +80°C.
- Lubrication on hook suspension.
- Short design for increased lifting height.
- Safety latch with locking pin.
- C3M finish in signal yellow.

Options:
- Double hook.
- Double hook with shackle hole.
- Quad hook.
- Shackle stud eye.

Important:
Inquiries for custom versions are welcome!

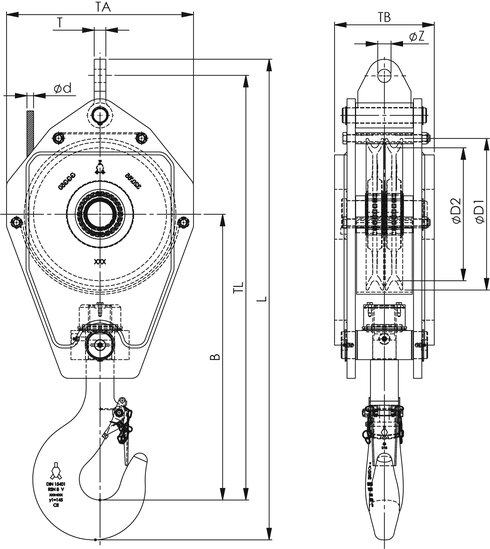

Product Picture 1

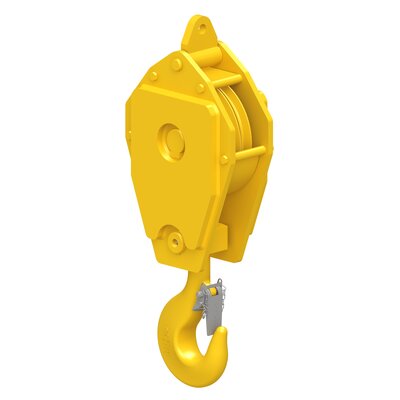

Product Picture 2
Select a row from the table below, then click the add to quote button
WLL
ton
Model no. For wire Ø
mm
Hooksize Ø D1
mm
Ø D2
mm
B
mm
O
mm
TA
mm
TB
mm
TL
mm
L
mm
T
mm
Ø Z
mm
Weight
kg
16 SRB 285 .16 .2 .16 .E 16 6 320 280 608 59 420 165 908 1 033 28 32 95
16 SRB 260 .14 .2 .16 .E 14 6 300 260 593 59 400 166 878 1 003 28 32 130
16 SRB 260 .16 .2 .16 .E 16 6 300 260 593 59 400 166 878 1 003 28 32 130
20 SRB 285 .16 .2 .20 .E .A 16 8 320 280 668 69 420 165 968 1 103 28 32 130
20 SRB 285 .16 .2 .20 .E .B 16 8 320 280 668 69 420 195 968 1 103 28 32 150
20 SRB 320 .16 .2 .20 .E 16 8 365 320 688 69 450 195 1 011 1 146 28 32 160
25 SRB 320 .16 .2 .25 .E 16 8 365 320 688 69 450 240 1 011 1 146 28 32 205
29 SRB 355 .19 .2 .29 .E 19 8 410 355 713 69 500 245 1 063 1 203 35 37 250
29 SRB 400 .22 .2 .29 .E 22 8 460 400 743 69 570 250 1 128 1 273 40 43 320
40 SRB 450 .24 .2 .40 .E 24 12 515 450 894 84 600 333 1 322 1 477 45 52 550
50 SRB 450 .26 .2 .50 .E 26 16 515 450 894 97 600 333 1 322 1 514 45 52 550
63 SRB 528 .26 .2 .63 .E 26 16 595 528 1 003 97 710 403 1 483 1 675 45 52 980
80 SRB 528 .28 .2 .80 .E 28 20 595 528 1 109 110 710 413 1 589 1 809 50 59 1 000
100 SRB 670 .28 .2 .100 .E 28 20 760 670 1 257 110 870 502 1 822 2 042 50 59 2 240
100 SRB 670 .32 .2 .100 .E 32 20 760 670 1 257 110 870 502 1 822 2 047 60 66 2 240
