Sheave with cylindrical roller bearings

Ropeblock

General:
Besides being an integral part of blocks, sheaves are also used in a wide variety of applications, not only limited to cranes. Ropeblock has developed a standard line of sheaves that are used for most wireropes. Standard production is cast ductile iron with graphite lubricated grooves, however, cast steel, nylon and welded fabrication is also possible.
Some key benefits of ropeblock sheaves:
- Optimal groove opening angle coping with fleet angle problems.
- Wide range of bearing options to meet your specific requirement.
- Self-lubricating "graphite-rich" grooves to promote wire rope longevity.
- Optimally designed to reduce fatigue.
Options:
- Finish depending on application.
- Different shaft sizes possible.
- Groove may be adjusted to other wire rope diameters.

Product Picture 1
Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to quote button
Size Model no. Groove radius Bearing R
mm		 D1
mm		 D2
mm		 D3
mm		 E
mm		 F
mm		 Ø G
mm		 Weight
kg		 CAD

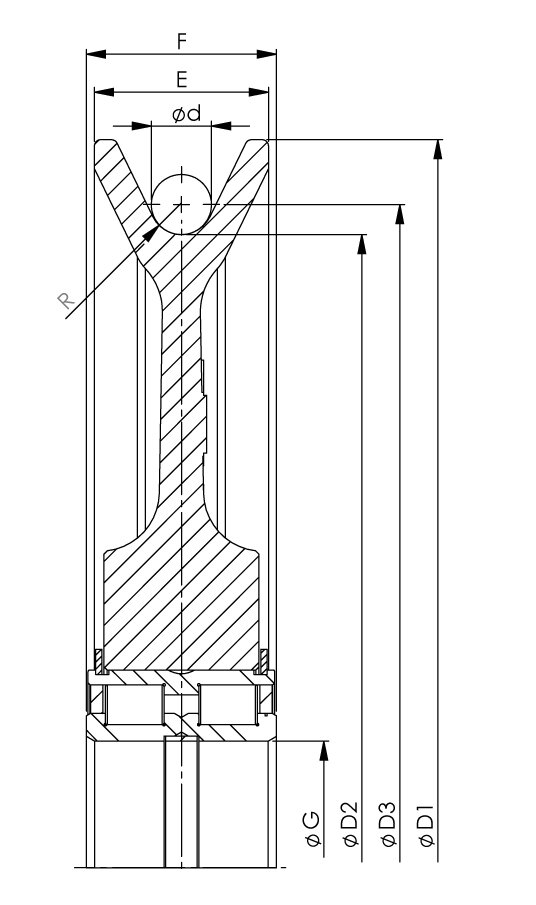

11 SE .250 .5008B .6 6 SL04 5008PP 0,24 290 250 261 32 38 40 5.8
10 SE .250 .5008B .5,5 5,5 SL04 5008PP 0,22 290 250 260 32 38 40 5.9
13 SE .250 .5008B .7,2 7,2 SL04 5008PP 0,28 290 250 263 32 38 40 6.2
13 SE .280 .5010B .7 7 SL04 5010PP 0,28 320 280 293 36 40 50 8.1
13 SE .280 .5010 .7 7 SL04 5010PP 0,28 320 280 293 36 40 50 8.1
16 SE .295 .5008B .8,5 8,5 SL04 5008PP 0,33 330 295 311 32 38 40 8.8
16 SE .260 .5012 .8,5 8,5 SL04 5012PP 0,33 300 260 276 42 46 60 9.1
16 SE .280 .5012 .8,5 8,5 SL04 5012PP 0,33 320 280 296 42 46 60 9.1
15 SE .280 .5012 .8 8 SL04 5012PP 0,31 320 280 295 42 46 60 9.2
13 SE .280 .5012 .7 7 SL04 5012PP 0,28 320 280 293 42 46 60 9.4
14 SE .260 .5012 .7,5 7,5 SL04 5012PP 0,30 300 260 274 42 46 60 9.6
19 SE .280 .5012 .10 10 SL04 5012PP 0,39 320 280 299 42 46 60 10.3
18 SE .345 .5010B .9,5 9,5 SL04 5010PP 0,37 385 345 363 36 40 50 12.5
19 SE .345 .5010B .10 10 SL04 5010PP 0,39 385 345 364 36 40 50 12.5
19 SE .320 .5013 .10 10 SL04 5013PP 0,39 365 320 339 42 46 65 13.2
16 SE .320 .5013 .8,5 8,5 SL04 5013PP 0,33 365 320 336 42 46 65 13.5
18 SE .354 .5013 .9,5 9,5 SL04 5013PP 0,37 400 354 372 42 46 65 16.5
19 SE .355 .5016 .10 10 SL04 5016PP 0,39 410 355 374 55 60 80 16.8
22 SE .355 .5016 .12 12 SL04 5016PP 0,47 410 355 377 55 60 80 16.8
19 SE .355 .5013 .10 10 SL04 5013PP 0,39 410 355 374 42 46 65 17.8
19 SE .360 .5016 .10 10 SL04 5016PP 0,39 420 360 379 55 60 80 17.9
18 SE .355 .5013 .9,5 9,5 SL04 5013PP 0,37 410 355 373 42 46 65 18
17 SE .355 .5013 .9 9 SL04 5013PP 0,35 410 355 372 42 46 65 18.1
16 SE .355 .5013 .8,5 8,5 SL04 5013PP 0,33 410 355 371 42 46 65 18.3
18 SE .360 .5016 .9,5 9,5 SL04 5016PP 0,37 420 360 378 55 60 80 21.6
16 SE .360 .5016 .8,5 8,5 SL04 5016PP 0,33 420 360 376 55 60 80 21.9
21 SE .400 .5014B .11,5 11,5 SL04 5014PP 0,45 460 400 421 49 54 70 24.7
19 SE .400 .5013 .10 10 SL04 5013PP 0,39 460 400 419 43 46 65 24.8
18 SE .400 .5013 .9,5 9,5 SL04 5013PP 0,37 460 400 418 43 46 65 25
16 SE .400 .5013 .8,5 8,5 SL04 5013PP 0,33 460 400 416 43 46 65 25.4
18 SE .400 .5014B .9,5 9,5 SL04 5014PP 0,37 460 400 418 49 54 70 25.4
22 SE .400 .5016 .12 12 SL04 5016PP 0,47 460 400 422 55 60 80 28.1
21 SE .400 .5016 .11,5 11,5 SL04 5016PP 0,45 460 400 421 55 60 80 28.3
19 SE .400 .5016 .10 10 SL04 5016PP 0,39 460 400 419 55 60 80 28.8
22 SE .400 .5018 .12 12 SL04 5018PP 0,47 460 400 422 62 67 90 30.2
21 SE .400 .5018 .11,5 11,5 SL04 5018PP 0,45 460 400 421 62 67 90 30.4
19 SE .400 .5018 .10 10 SL04 5018PP 0,39 460 400 419 62 67 90 31
28 SE .450 .5018 .15 15 SL04 5018PP 0,59 515 450 478 62 67 90 39.2
25 SE .450 .5018 .13,5 13,5 SL04 5018PP 0,53 515 450 475 62 67 90 39.8
22 SE .450 .5018 .12 12 SL04 5018PP 0,47 515 450 472 62 67 90 40.5
19 SE .450 .5018 .10 10 SL04 5018PP 0,39 515 450 469 62 67 90 41.4
19 SE .450 .160 .10 10 SL04 160PP 0,39 515 450 469 75 80 160 45.4
26 SE .528 .5018 .14 14 SL04 5018PP 0,55 595 528 554 61 67 90 45.4
21 SE .482 .5018 .11,5 11,5 SL04 5018PP 0,45 560 482 503 62 67 90 45.5
28 SE .450 .5024 .15 15 SL04 5024PP 0,59 515 450 478 75 80 120 45.6
25 SE .450 .5024 .13,5 13,5 SL04 5024PP 0,53 515 450 475 75 80 120 46.3
25 SE .500 .5018B .13,5 13,5 SL04 5018PP 0,53 570 500 526 61 67 90 46.8
22 SE .450 .5024 .12 12 SL04 5024PP 0,47 515 450 472 75 80 120 47
19 SE .450 .5024 .10 10 SL04 5024PP 0,39 515 450 469 75 80 120 47.9
28 SE .528 .5018 .15 15 SL04 5018PP 0,59 595 528 556 61 67 90 49.9
25 SE .528 .5018 .13,5 13,5 SL04 5018PP 0,53 595 528 553 61 67 90 50.6
24 SE .528 .5018 .13 13 SL04 5018PP 0,51 595 528 552 61 67 90 50.9
28 SE .528 .160 .15 15 SL04 160PP 0,59 595 528 556 72 80 160 52.7
26 SE .528 .160 .14 14 SL04 160PP 0,55 595 528 554 74 80 160 53.2
25 SE .528 .160 .13,5 13,5 SL04 160PP 0,53 595 528 553 74 80 160 53.5
24 SE .528 .200 .13 13 SL04 200PP 0,51 595 528 552 74 80 200 56.7
28 SE .528 .5024 .15 15 SL04 5024PP 0,59 595 528 556 74 80 120 57
25 SE .528 .5024 .13,5 13,5 SL04 5024PP 0,53 595 528 553 74 80 120 57.8
24 SE .528 .160 .13 13 SL04 160PP 0,51 595 528 552 74 80 160 61.2
26 SE .528 .5024 .14 14 SL04 5024PP 0,55 595 528 554 74 80 120 63.5
28 SE .528 .200 .15 15 SL04 200PP 0,59 595 528 556 74 80 200 64.9
32 SE .575 .5024 .17 17 SL04 5024PP 0,67 650 575 607 74 80 120 70.9
28 SE .575 .160 .15 15 SL04 160PP 0,59 650 575 603 74 80 160 71.4
26 SE .575 .160 .14 14 SL04 160PP 0,55 650 575 601 74 80 160 72
28 SE .575 .5024 .15 15 SL04 5024PP 0,59 650 575 603 74 80 120 72
30 SE .575 .5022 .16 16 SL04 5022PP 0,63 650 575 605 74 80 110 72.3
26 SE .575 .5024 .14 14 SL04 5024PP 0,55 650 575 601 74 80 120 72.6
26 SE .575 .5022 .14 14 SL04 5022PP 0,55 650 575 601 74 80 110 73.5
28 SE .575 .200 .15 15 SL04 200PP 0,59 650 575 603 74 80 200 76.1
26 SE .575 .200 .14 14 SL04 200PP 0,55 650 575 601 74 80 200 76.7
32 SE .630 .160 .17 17 SL04 160PP 0,67 710 630 662 74 80 160 81.4
30 SE .630 .160 .16 16 SL04 160PP 0,63 710 630 660 74 80 160 82.1
28 SE .630 .160 .15 15 SL04 160PP 0,59 710 630 658 74 80 160 82.8
32 SE .630 .5024 .17 17 SL04 5024PP 0,67 710 630 662 74 80 120 83
30 SE .630 .5022B .16 16 SL04 5022PP 0,63 710 630 660 74 80 110 83.5
30 SE .630 .5024 .16 16 SL04 5024PP 0,63 710 630 660 74 80 120 83.7
28 SE .630 .5024 .15 15 SL04 5024PP 0,59 710 630 658 74 80 120 84.4
32 SE .630 .200 .17 17 SL04 200PP 0,67 710 630 662 74 80 200 86.3
30 SE .630 .200 .16 16 SL04 200PP 0,63 710 630 660 74 80 200 87
28 SE .630 .200 .15 15 SL04 200PP 0,59 710 630 658 74 80 200 87.7
32 SE .670 .5024 .17 17 SL04 5024PP 0,67 760 670 702 74 80 120 89.7
32 SE .670 .160 .17 17 SL04 160PP 0,67 760 670 702 74 80 160 90.5
28 SE .670 .5024 .15 15 SL04 5024PP 0,59 760 670 698 74 80 120 91.3
28 SE .670 .160 .15 15 SL04 160PP 0,59 760 670 698 74 80 160 92.2
25 SE .670 .5024 .13,5 13,5 SL04 5024PP 0,53 760 670 695 74 80 120 92.6
25 SE .670 .200 .13,5 13,5 SL04 200PP 0,53 760 670 695 74 80 200 93.5
25 SE .670 .160 .13,5 13,5 SL04 160PP 0,53 760 670 695 74 80 160 93.5
38 SE .710 .5024 .20 18 SL04 5024PP 0,71 800 710 748 72 80 120 94.5
32 SE .670 .200 .17 17 SL04 200PP 0,67 760 670 702 74 80 200 95.3
28 SE .670 .200 .15 15 SL04 200PP 0,59 760 670 698 74 80 200 97
34 SE .710 .5026 .18 18 SL04 5026PP 0,71 800 710 744 78 95 130 98.3
34 SE .710 .5022 .18 18 SL04 5022PP 0,71 800 710 744 72 80 110 98.7
32 SE .710 .5022 .17 17 SL04 5022PP 0,67 800 710 742 72 80 110 99.8
38 SE .800 .5024 .20 18 SL04 5024PP 0,71 890 800 838 70 80 120 127.1
32 SE .800 .5026 .17 17 SL04 5026PP 0,67 890 800 832 75 95 130 129.9
38 SE .800 .5026 .20 18 SL04 5026PP 0,71 890 800 838 75 95 130 133.5
38 SE .760 .5030 .20 18 SL04 5030PP 0,71 860 760 798 85 100 150 134.2
31 SE .800 .5022 .16 16 SL04 5022PP 0,63 890 800 830 70 80 110 136.5
39 SE .760 .5026 .20,5 20,5 SL04 5026PP 0,81 860 760 799 75 95 130 138.2
42 SE .800 .5028 .22,5 22,5 SL04 5028PP 0,89 890 800 842 85 95 140 149
44 SE .800 .5030 .23,5 23,5 SL04 5030PP 0,93 890 800 844 90 100 150 149.6
40 SE .800 .5028 .21 21 SL04 5028PP 0,83 890 800 840 85 95 140 150.4
38 SE .800 .5028 .20 18 SL04 5028PP 0,71 890 800 838 85 95 140 151.4
36 SE .800 .5028 .19 18 SL04 5028PP 0,71 890 800 836 85 95 140 152.4
40 SE .800 .5030 .21 21 SL04 5030PP 0,83 890 800 840 90 100 150 152.4
38 SE .800 .5030 .20 18 SL04 5030PP 0,71 890 800 838 90 100 150 153
42 SE .800 .5030 .22,5 22,5 SL04 5030PP 0,89 890 800 842 90 100 150 160.1
