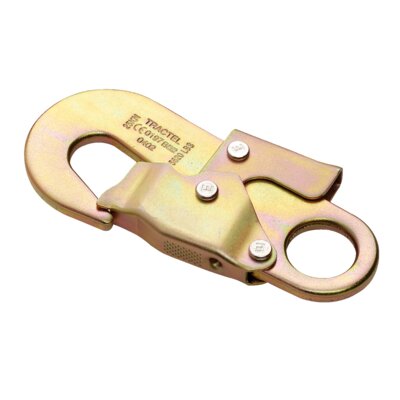

Tractel
  • Frequent connection
  • Double trigger automatic locking
  • Use above 100 kg (High Capacity Range 150kg).
  • Material: steel
  • Marking: According to standard
  • Finish: Zinc plated
  • Standard: EN 362
Select a row from the table below, then click the add to quote button
Part Code Min. breaking force
kN
Length
mm
Opening
mm
Height
mm
Thickness
mm
Weight
gr
CAD
19.0931722 25 130 17 55 6 228
