• Robust construction with a block steel body
  • Ergonomic and removable handle for transport
  • Working load applied on toe and head
  • Pressure valve to avoid overloading
  • Toe can swivel 360° around the axis of the jack
  • Operation in both vertical and horizontal position.
  • Easy maintenance
  • Removable operating lever
  • Marking: CE-marked
  • Warning: Do not use in unstable and uncertain positions. Never subject the toe to point loading, always fully load.
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Stroke
mm
Maximum hand force
on crank kg
Min–max lifting height
of toe mm
Min–max lifting height
of top mm

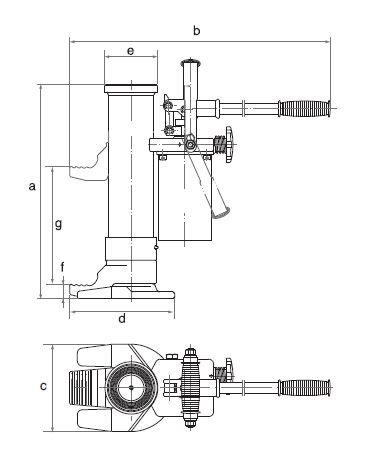

b
mm
c
mm
d
mm
e
mm
Weight
kg
CAD
16.35243269 5 205 38 25 - 230 368 - 573 740 140 213 ø 93 20
16.35243279 10 230 40 20 - 260 420 - 650 745 170 205 ø 103 28
16.3579909 25 215 40 58 - 273 505 - 720 1,305 210 420 155 x 155 109
