Thern

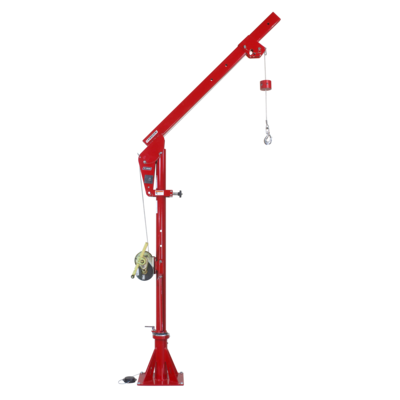

Up to 544 kg capacity portable Davit Crane

  • Load ratings up to 225/544 kg
  • Portable, heaviest part 13.1 kg/24 kg
  • Rugged and affordable
  • Manual or power winch operation
  • 360° rotation
  • Flexibility due to telescopic arm and different angles of the boom
  • Easy, No-Tools Assembly/Disassembly (all individual components less than 13.1 kg /24 kg
  • Variety of bases
  • 2-Year warranty
  • Proof of load 125% of WLL (Optional)

Machinery directive: 2006/42/EC as amended by Directive 95/16/EC.

  • Marking: CE-marked
  • Finish: Powder coat
Select a row from the table below, then click the add to quote button
Part Code Capacity max. Reach
kg
Capacity min. Reach
kg
Max. Reach
mm
Min. Reach
mm
CAD
13.155PA10 294 544 1,219 558
13.155PA5 113 227 914 355

Finish: galvanized, stainless 304 & 316 and three part epoxy can be ordered up on request

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
