Design: Chain swivels with out bearing. According to Federal Specification RR-C-271F.

  • Material: Hot dip Galvanized - Quenched & Tempered
  • Marking: WLL
  • Finish: Galvanized
  • Note: The swivels are positioning devices and are not intended to rotate under load. For load swivels, see ball bearing swivels.
  • Safety factor: 5:1

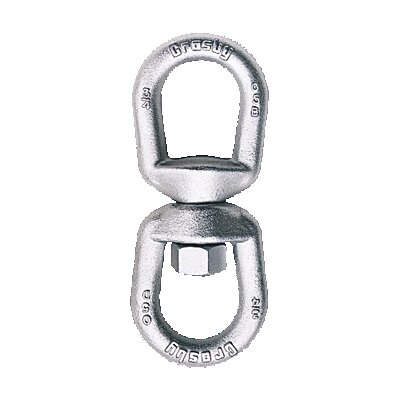

G-402 regular swivel

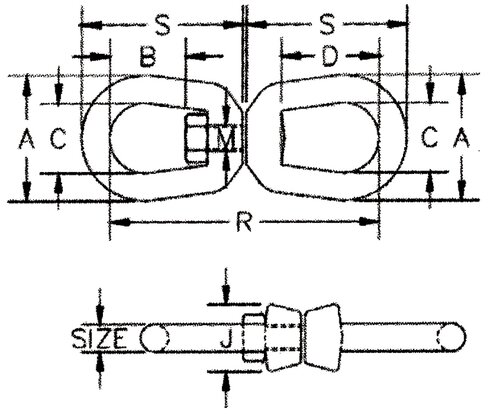

Drawing G-402 regular swivel
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
WLL
ton
A
mm
B
mm
C
mm
D
mm
J
mm
M
mm
R
mm
S
mm
Weight
kg
CAD
424 6 0,39 31,8 17,5 19,1 26,9 17,5 7,85 74,5 42,9 0,1 -
425 8 0,57 41,4 20,6 25,4 31,8 20,6 9,5 90,0 52,0 0,18 -
426 10 1,02 51 23,9 31,8 38,1 25,4 12,7 109 63,5 0,32 -
427 13 1,63 63,5 33,3 38,1 51,0 33,3 16,0 138 81,0 0,6 -
428 16 2,36 76 39,5 44,5 60,5 38,1 19,1 167 98,5 1,13 -
429 19 3,27 89 44,5 51,0 67,0 47,8 22,4 183 109 1,82 -
430 22 4,54 102 52 57,0 77,5 54,0 25,4 213 127 2,83 -
431 25 5,67 114 58,5 63,5 89,0 60,5 28,7 245 146 4,06 -
432 32 8,16 143 68,5 79,5 93,5 76,0 38,1 291 172 7,42 -
433 38 20,5 180 98,5 104 98,5 95,2 57,0 424 252 20,8 -
