Crosby

Design: Swivel with eye and jaw equipped with tapered roller thrust bearing.

Features:

  • Suitable for frequent rotation under load.
  • All swivels individually Proof Tested to 2 times the Working Load Limit.
  • Pressure lube fitting provided.
  • All jaws complete with bolts, nuts and cotter pins.
  • Other types and capacities up to 1250 t available on demand.
  • Marking: CE-marked
  • Note: Always check before use if your steel wire rope is suitable for use with a swivel.
  • Warning: Not to be used on demolition- (wrecking-) balls!
  • Safety factor: 5:1
Crosby AS-4 Eye and Jaw Swivel effective for lifting where turning is required

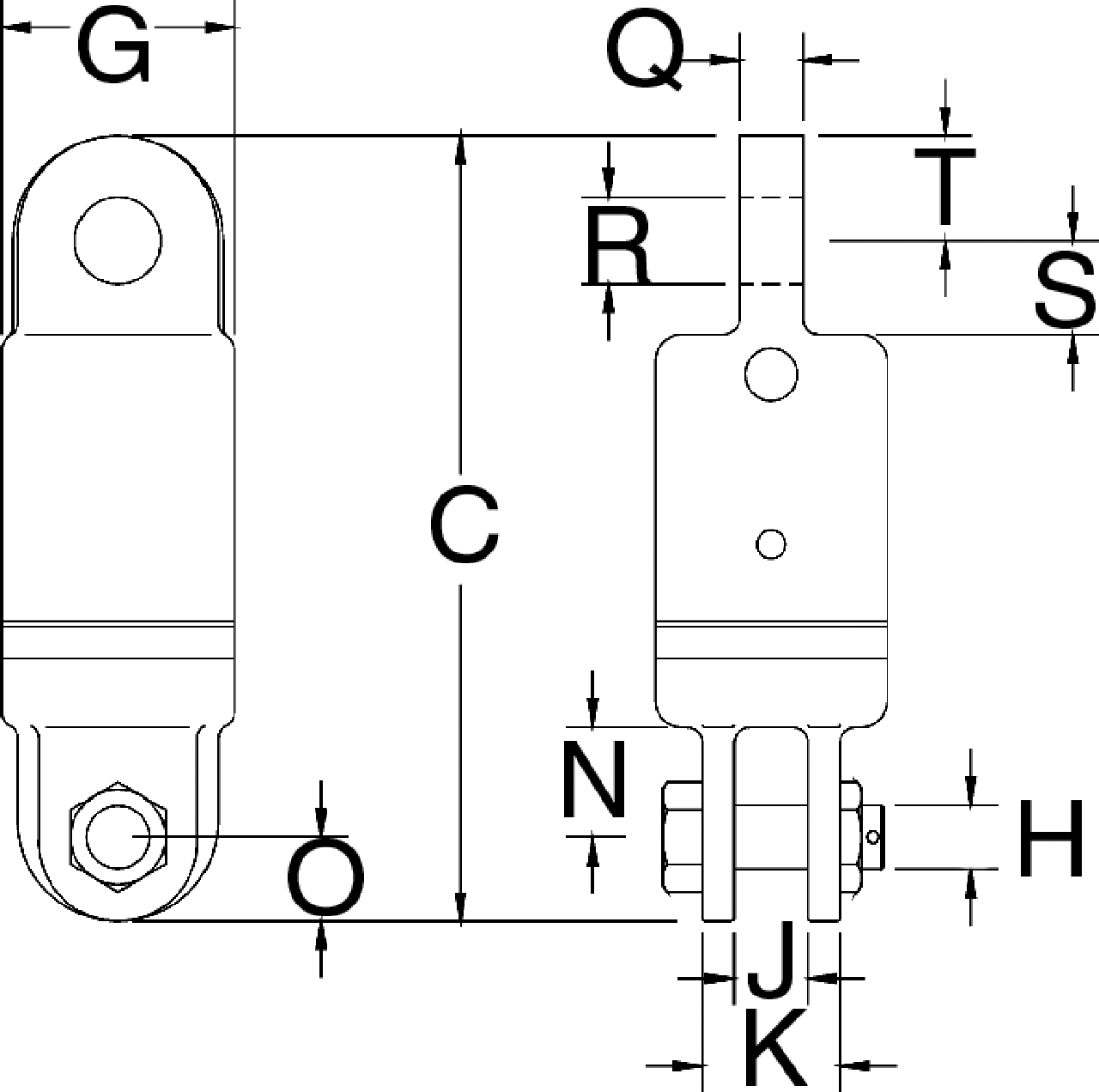

Crosby AS-4 Eye and Jaw Swivel measurements
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Rope Ø
mm
Swivel No C
mm
G
mm
H
mm
J
mm
K
mm
N
mm
O
mm
Q
mm
R
mm
S
mm
T
mm
Weight
kg
CAD
465 3 13 3-S-4 237 70,0 19,1 22,4 41,1 33,3 25,4 19,1 26,2 28,4 31,8 4,08 -
471 5 16 5-S-4 256 76,0 22,4 25,4 57,0 41,1 28,4 25,4 32,5 31,8 31,8 5,6 -
477 8,5 19 8-S-4 311 102 25,4 39,5 71,5 54,0 35,1 31,8 35,8 41,1 38,1 13,2 -
483 10 22 10-S-4 409 114 38,1 44,5 86,0 89,0 44,5 42,9 42,9 70,0 47,8 20 -
489 15 26 15-S-4 425 127 38,1 44,5 86,0 89,0 44,5 49,3 51,5 70,0 54,0 27,7 -
495 25 25-S-4 546 152 51,0 51,0 117 93,5 60,5 57,0 58,5 98,5 60,5 61 -
11.46298243 35 35-S-4 546 165 51,0 51,0 117 93,5 60,5 57,0 58,5 98,5 60,5 68 -
11.46298341 45 45-S-4 657 178 57,0 63,5 127 102 76,0 63,5 64,5 102 76,0 102 -
