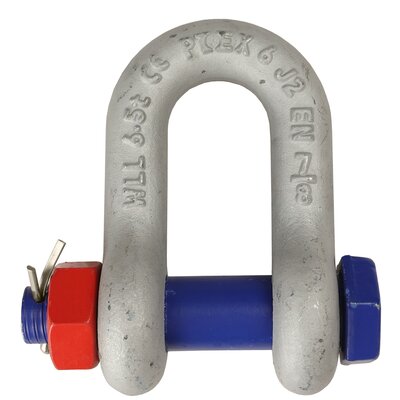

Dee type shackle PDSB is a high quality shackle intended for use in demanding environments.

It is supplied with a hexagon head safety bolt with nut and stainless steel cotter pin.

The shackle comply to EN 13889 and meets the performance requirements of US Federal Specification RR-C-271 Type IVB Class 3, Grade A.

Features:

  • Safe – All POWERTEX shackles are manufactured and tested in accordance to EN 13889
  • All bodies and bolts are marked with batch number for traceability
  • The body is forged in closed dies
  • All parts are made from alloy steel being quenched and tempered
  • All parts including bolts and nuts are hot dip galvanized for long life
  • High quality hot dip galvanization process giving an exclusive mat grey finish
  • Safety bolts and nuts are additionally painted in blue and red for quick and easy detection as original POWERTEX parts
  • Retaining pins made from stainless steel
  • Multilanguage user manuals
  • Material: Forged alloy steel, supplied with alloy safety bolt and nuts. Stainless steel retaining pins
  • Marking: According to standard, CE-marked, POWERTEX (PT or PTEX) , WLL, size, grade and batch number.
  • Temperature range: -20°C up to +200°C
  • Finish: All parts hot dip galvanized + head-bolt and nut additional powder painted.
  • Standard: EN 13889
  • Safety factor: 6:1.
  • Grade: 6
906_e_225mm
2934_lom_225mm
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Nominal size
In.

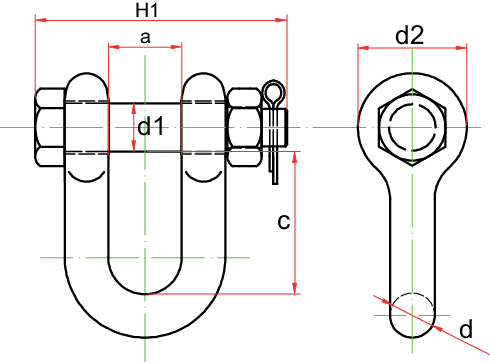

Pin Ø d1 a*
mm
c*
mm
d
mm
d2
mm
H1
mm
Weight
kg
CAD
171261 1202 0.5 1/4 8 13 22 6,5 17,5 42,5 0.05
171289 1203 0.75 5/16 9,5 13,5 25,5 8 21 47 0.086
171290 1204 1 3/8 11,2 17 30,9 10 25 56,5 0.16
171291 1205 1.5 7/16 12,7 18,5 36,4 11 27 63,5 0.215
164067 1206 2 1/2 15,8 20,6 41,4 12,7 30,5 75,5 0.34
166266 1207 3.25 5/8 18,8 27 51 16 40 92 0.6
171292 1208 4.75 3/4 22 32 63 19 48 106 1.02
171293 1209 6.5 7/8 25 37 72 22 54 120 1.6
171294 1210 8.5 1 28 43,5 81,75 26,5 60 135 2.3
171295 1211 9.5 1-1/8 32 48 94 29 68 143 3.33
171296 1212 12 1-1/4 35 53 102 32 76 164 4.3
171298 1213 13.5 1-3/8 38 59 113,5 35 84 182 5.87
171299 1214 17 1-1/2 42 62 123 38 92 195 7.6
171300 1215 25 1-3/4 50 75 148 45 106 224 11.7
171301 1216 35 2 56 84 174,5 52 122 248 17.84
*Tolerance: +/- 5%
