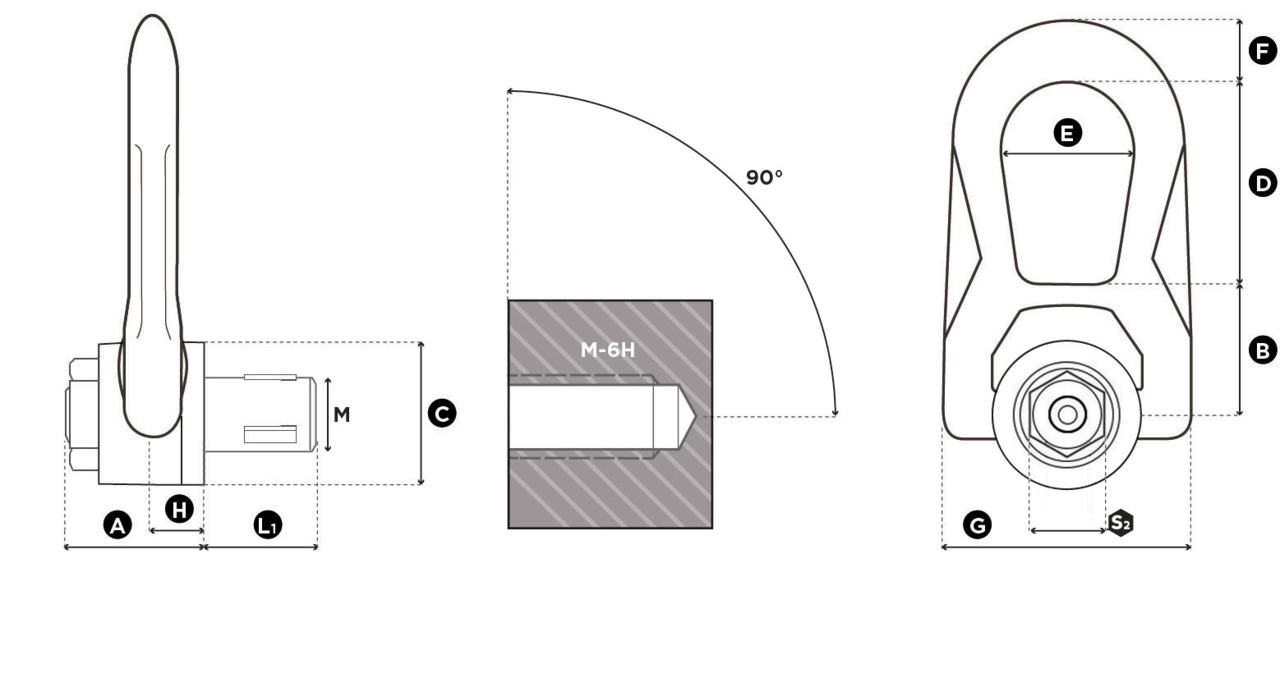

The QLR is a double swivel ring that allows particularly fast anchoring. At the push of a button, it can be fixed in the threaded hole in a matter of seconds. Its double swivel ensures a perfect alignment with the sling.
The QL.DSR saves up to 80 % of time compared to screwing in a conventional lifting ring. The system works purely mechanically and thus requires no complex maintenance.
The swivel lifting ring QL.DSR is made of gradup steel, which stands for a better quality of the used raw materials. It has higher lifting capacities than fixed rings and has a safety factor of 5, which means that its breaking load is five times greater than the capacity indicated in the technical data sheet.
Grade: GRADE UP
- Material: AISI 316 L
- Marking: According to standard, CE-marked, WLL , safety factor, individual traceability number (linked to Coditracer)
- Temperature range: -20°C up to +200°C
- Safety factor: 5:1
