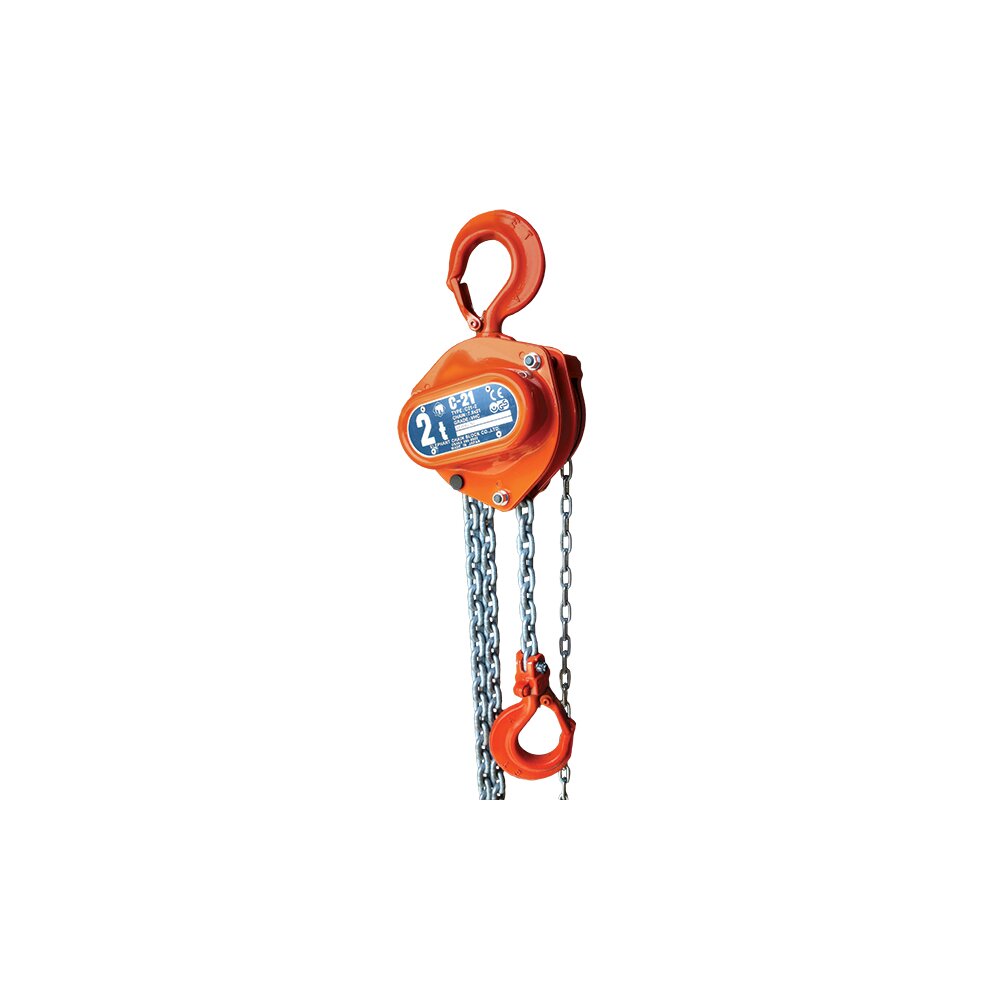

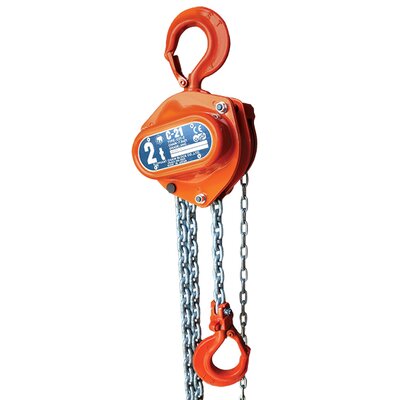

Chain Block Elephant C21

The C-21 Manual Chain Hoist is a lightweight and durable solution for lifting and moving heavy loads. It is a hand-operated hoist that can be attached to hooks, lugs, trolleys, or beam clamps, and can handle loads up to 5 tons. It has a galvanized load chain, a heavy duty frame, and long lasting fri

Show more

Part code:

The C-21 Manual Chain Hoist is a lightweight and durable solution for lifting and moving heavy loads. It is a hand-operated hoist that can be attached to hooks, lugs, trolleys, or beam clamps, and can handle loads up to 5 tons. It has a galvanized load chain, a heavy duty frame, and long lasting friction discs. The C-21 Manual Chain Hoist is suitable for various industries including construction, manufacturing, mining, and transportation.

Features:

  • Ideal manual chain hoist for assembly work due to its low weight.
  • Galvanized load chain with high tensile strength, Grade 10 according to EN 818/7.
  • Compact design.
  • Reliable load pressure brake that holds the load at any height.
  • Hooks fitted with safety flaps.
  • Patented guide for the load chain.
  • Equipped with a double ratchet spring for extra safety.
  • Load hooks bend gradually when overloaded and do not break abruptly.
  • Galvanized hand chain.

Standard delivery:

  • 3 m lifting height.
  • 2,5 m operating height.

Option:

  • Available in any other hoisting and operational heights.
  • Material: Durable all steel construction.
  • Marking: According to standard, CE-marked
  • Temperature range: -20°C up to +130°C.
  • Finish: Powder coated finish and plated frame components.
  • Standard: EN 818-7, EN 13157
  • Safety factor: 4:1
