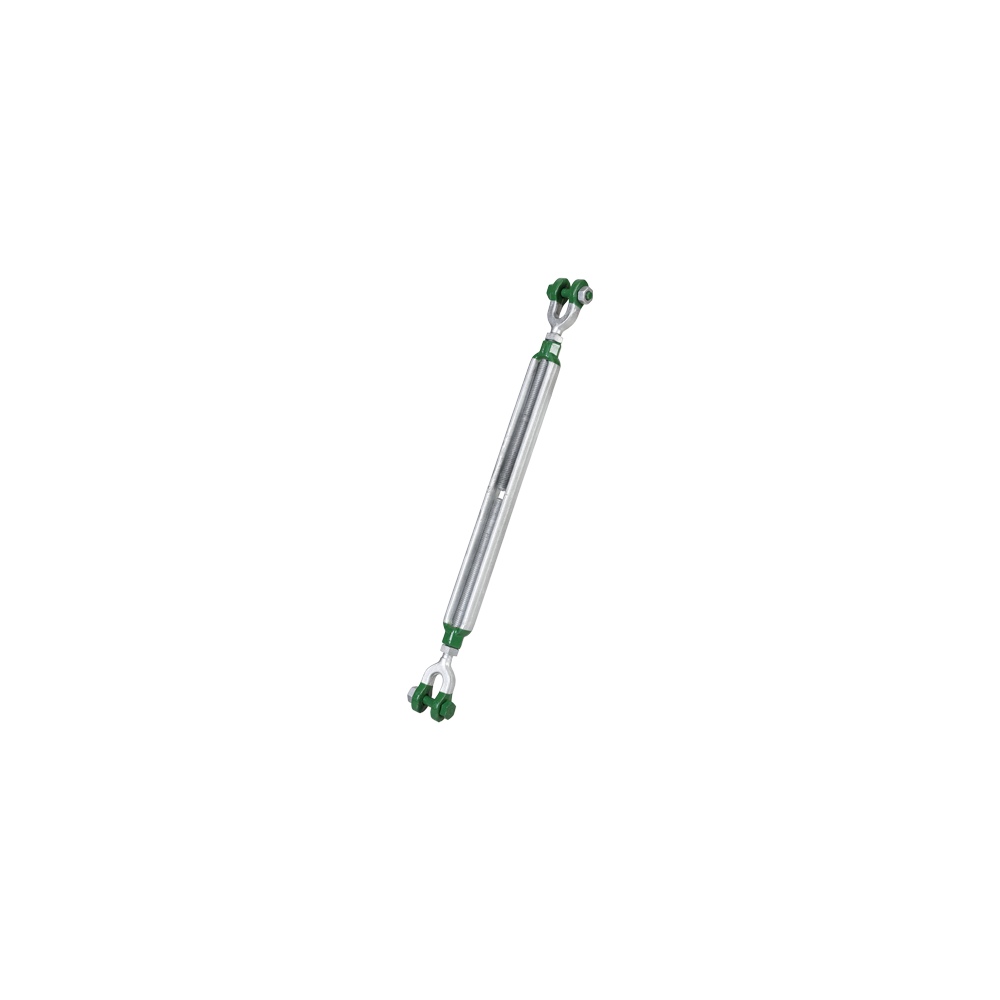

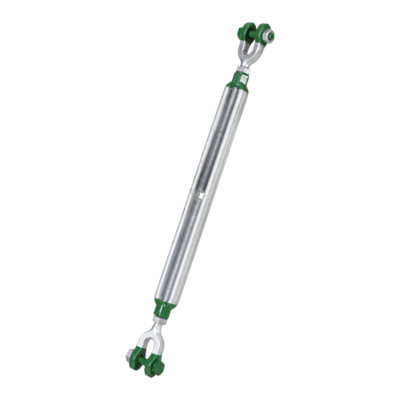

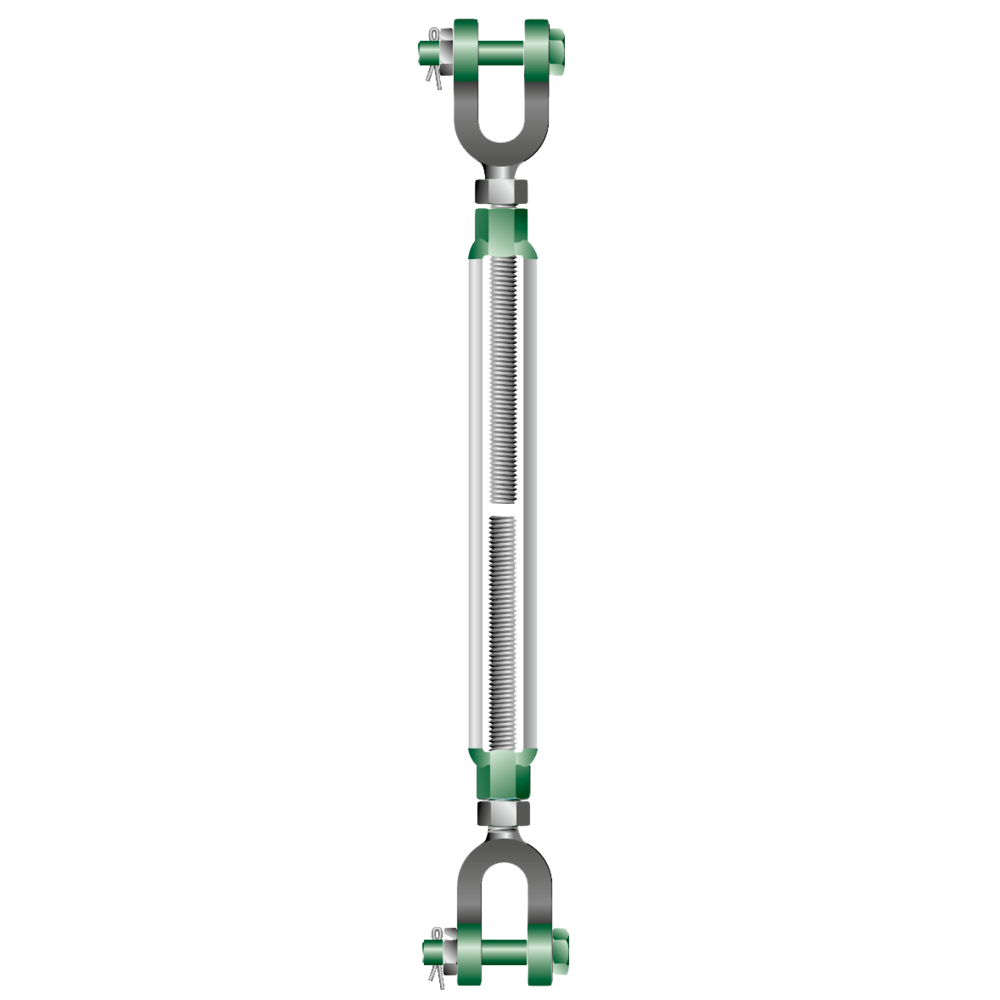

The Green Pin Polar® JJ Turnbuckle BN is a grade 8 turnbuckle with jaw-jaw end-fittings and a safety bolt, generally to ASTM F1145-92. The turnbuckle can be used in extreme climatic conditions, down to -40°C (-40°F). One of the unique features of Green Pin® Turnbuckles such as this one is that they can be used for both lifting and lashing. The turnbuckle also offers a double safety (cotter pin and safety bolt) which prevents accidental unscrewing of the pin. The Green Pin Polar® JJ Turnbuckle BN is available in a range with a diameter thread 1/2" (take up of 12") up to 1 3/4" (take up of 18").
Certification on request: 2.1, 2.2, 3.1, MTCa
Standard: Generally to ASTM F1145-92 formerly U.S. Federal Specification FF-T-791b.
- Material: Drop forged alloy steel, quenched and tempered
- Marking: CE-marked
- Temperature range: -40°C up to +200°C
- Finish: Hot dipped galvanized
- Note: Jaw ends up to and including 5/8" are fitted with bolts and nuts, sizes 3/4" and up are equipped with bolts, nuts and cotter pins
- Safety factor: 5:1
- Grade: 8
