• Ordinary right hand lay
  • Stainless
  • Not to be used with swivel
  • Rope construction: 6x19M-WSC
  • Material: AISI 316
  • Marking: According to standard
  • Temperature range: -40°C up to +200°C
  • Standard: EN 12385-4
    except material
  • Fill factor: 0,53
  • RCN: 04
  • Winch rope Wire for winches
  • Stay rope Stay rope
  • Overhead cranes For the use with overhead crane
  • Agriculture and livestock Wire for agriculture
  • Slings Sling wire rope

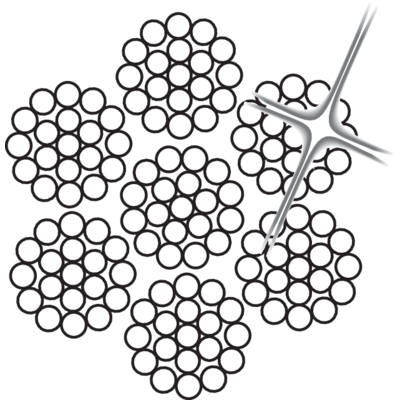

Stainless steel 6x19M-WSC AISI 316 wire rope core structure
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
1570 N/mm²
Weight
kg/100m
01.S10133020D 2 1,67 2,27 1,52
01.S10133030D 3 3,76 5,12 3,43
01.S10133040D 4 6,69 9,09 6,1
01.S10133050D 5 10,5 14,2 9,53
01.S10133060D 6 15 20,5 13,7
01.S10133070D 7 20,5 27,8 18,7
01.S10133080D 8 26,8 36,4 24,4
01.S10133090D 9 33,9 46 30,9
01.S10133100D 10 41,8 56,8 38,1
01.S10133110D 11 50,6 68,8 46,1
01.S10133120D 12 60,2 81,8 54,9
01.S10133130D 13 70,6 96 64,4
01.S10133140D 14 81,9 111 74,7
01.S10133150D 15 94,1 128 85,7
01.S10133160D 16 107 145 97,5
01.S10133180D 18 135 184 123
01.S10133200D 20 167 227 152
