• Right hand langs lay
  • Left hand langs lay
  • Galvanized
  • Rotation resistant
  • Compacted strands

NRHD 24: Rotation resistant hoist rope/compacted hoist rope

General: A rotation resistant hoist rope for high rise applications including tower cranes, mobile cranes, crawler cranes, offshore operating cranes or any high lift hoisting device requiring high rotation resistance.

Note: NRHD 24 is available with plastic impregnation which improves the rope behaviour in case of fleet angles and repetitive lifting cycles, and is recommended
for high rise heavy duty and intensive use. Average minimum breaking load is 2% lower.

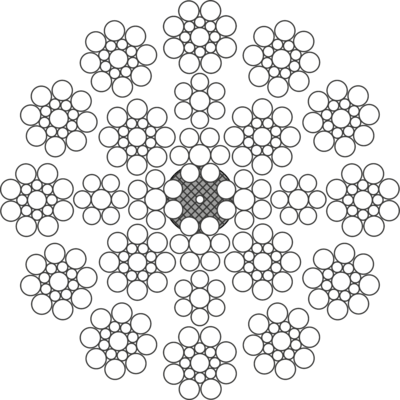

  • Rope construction: NRHD 24/24(W)x7 NRHD 24/24(W)x17
  • Piling crane Wire for piling crane
  • Tower crane Wire for tower crane
  • Mobile port crane Wire for mobile port crane
  • Offshore crane Wire for offshore crane
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
Steel Area
mm²
Min. breaking force
kN
2160 N/mm²
Construction
mm
Weight
kg/100m
01.G47---080H 8 30,5 56 24x7 0,27
01.G47---090H 9 37,8 68,5 24x7 0,34
01.G47---100H 10 47,8 86 24x7 0,43
01.G47---110H 11 56,8 104 24x7 0,51
01.G47---120H 12 68 124,5 24x7 0,61
01.G47---130H 13 81,6 145 24x7 0,72
01.G47---140H 14 96,5 175 24x7 0,86
01.G47---150H 15 106,2 190 24x7 0,94
01.G47---160H 16 125,5 220 24x7 1,12
01.G47---170H 17 140,8 248 24x7 1,25
01.G47---180H 18 158,2 275 24x7 1,41
01.G47---190H 19 275 310 24x7 1,53
01.G47---200H 20 188,5 335 24x17 1,67
01.G47---210H 21 213,4 368 24x17 1,89
01.G47---220H 22 235,3 415 24x17 2,09
01.G47---240H 24 281 495 24x17 2,5
01.G47---254H 25,4 309,8 560 24x17 2,75
01.G47---280H 28 384,9 675 24x17 3,42
01.G47---290H 29 408,2 712 24x17 3,63
01.G47---300H 30 446 765 24x17 3,95
01.G47---320H 32 507,4 870 24x17 4,49
01.G47---340H 34 572,8 983 24x17 5,07
01.G47---360H 36 643,6 1 095 24x17 5,73
01.G47---380H 38 717,1 1 215 24x17 6,38
01.G47---400H 40 795,6 1 345 24x17 7,08
01.G47---420H 42 877,2 1 485 24x17 7,81
01.G47---440H 44 962,7 1 630 24x17 8,57
01.G47---820H 82 3 343,7 5 652 24x17 29,75

 Other diameters with other tolerances than those shown here can be made on studies.
