Crosby

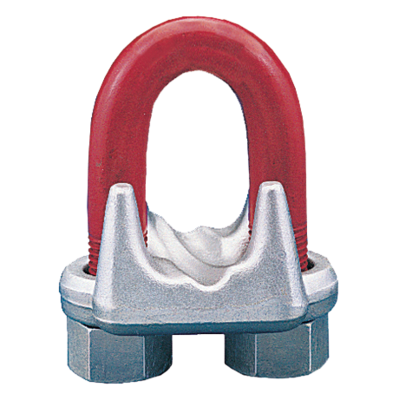

  • Features: Wire Grips to secure to form a temporary termination on site.
  • Material: Steel
  • Marking: According to standard, ID code and Manufacturer's symbol
  • Finish: Galvanised
  • Standard: EN 13411-5
  • Safety factor: 5:1

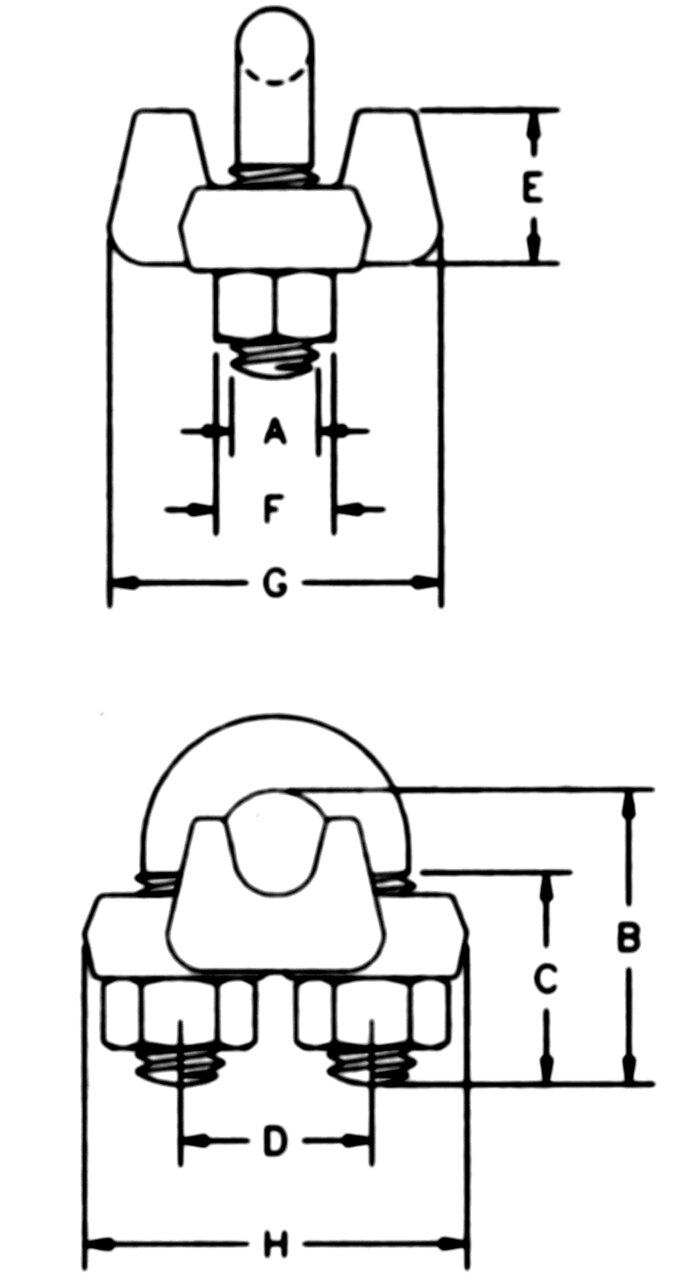

Crosby_g450_drg
Select a row from the table below, then click the add to quote button
Part Code Wire Ø
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
Weight
kg/100m
CAD
976 3-4 5.6 18.3 11.2 11.9 10.4 9.65 20.6 23.9 2.72
977 5 6.35 24.6 14.2 15 12.7 11.2 23.9 29.5 4.54
978 6-7 7.85 26.2 12.7 19.1 16.8 14.2 30.2 36.6 8.62
979 8 9.65 35.1 19.1 22.4 18.3 17.5 33.3 42.9 12.7
980 9-10 11.2 38.1 19.1 25.4 23.1 19.1 41.4 49.3 21.8
982 12-13 12.7 47.8 25.4 30.2 28.7 22.4 48.5 58 36.3
984 16 14.2 60.5 31.8 33.3 34 23.9 52.5 63.5 49.9
985 18-20 15.7 70 36.6 38.1 35.8 26.9 57 72 64
986 22 19.1 79 41.1 44.5 40.4 31.8 62 80.5 96
987 24-26 19.1 89 46 47.8 45.2 31.8 67 88 114
988 28-30 19.1 98.5 51 51 48.5 31.8 71.5 91 128
989 32-34 22.4 108 54 59.4 55.5 36.6 79.5 105 199
990 36 22.4 118 58.5 59.4 58.5 36.6 79.5 106 200
991 38 22.4 125 60.5 66.5 62 36.6 86.5 113 247
992 41-42 25.4 135 66.5 70 67.5 41.4 92 11 319
993 44-46 28.7 146 70 77.5 74.5 46 97 134 424
994 48-52 31.8 164 76 86 77 51 113 149 590
995 56-58 31.8 181 81 98.5 81 51 114 162 726
996 62-65 31.8 195 87.5 105 93.5 51 119 168 862
997 68-72 31.8 211 90.5 111 124 51 127 175 1,043
998 75-78 38.1 233 98.5 121 119 60.5 149 194 1,406
10.151010426 85-90 38.1 273 114 140 152 60.5 157 213 1,814

* Electro-plated U-Bolt and Nuts. ** 70mm and 89mm base is made of cast steel.
