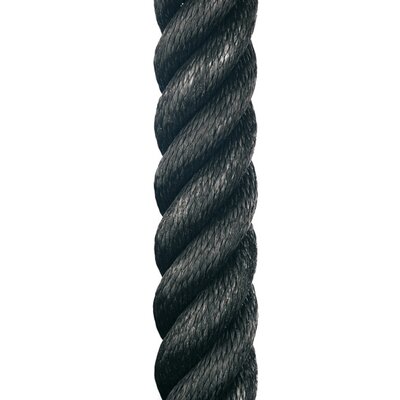

General: Polyester rope for typical applications like mooring lines, tie up lines, deck and anchor lines, use in rigging etc.

Specific gravity: 1,38 (sinks).
Melting point: 265°C.
Elongation: 15%.

  • Material: Polyester fibre. It's a smooth and flexible rope, with high strength with excellent resistant to outer and internal wearing. It has a low working elongation and has an excellent UV resista
  • Finish: Black.
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
Min. breaking force
kN
MBL
ton
ton
Length Colour Min. breaking force
ton
Weight
kg/110m
CAD
12.03PES080SPL 8 10 1 300 Black 1 5.28
12.03PES100SPL 10 15.6 1.3 200 Black 1.3 8.36
12.03PES120SPL 12 22.5 2.3 150 Black 2.3 12.1
12.03PES140SPL 14 31.3 3.2 130 Black 3.2 16.3
12.03PES160SPL 16 40.2 4.1 80 Black 4.1 21.5
12.03PES180C11 18 50 5.1 110 Black 5.1 27
12.03PES200C11 20 61.8 6.3 110 Black 6.3 33.3
12.03PES220C11 22 74.5 7.6 110 Black 7.6 40.4

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
