Rud

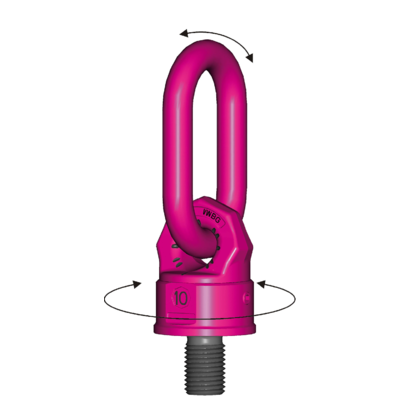

The eyes can be loaded with working load limit in all directions. All the eyes are pivoted to avoid breakage in the eyes, which also make it possible to fold it aside when it is not in use. Furthermore it has a ball beared sviwel which makes the lifting eye to always stand in the correct direction to the load.

  • Material: Forged of high strength steel.
  • Marking: According to standard, CE-marked, WLL
  • Finish: Striking fluorescent pink powder coating.
  • Standard: EN 1677-1
  • Safety factor: 4:1.
Select a row from the table below, then click the add to quote button
Part Code Code Diameter
mm
WLL
ton
Thread F Standard Weight
kg
10990850 WBG-V 36 0,45 M10 17 0,3
10990852 WBG-V 42 0,6 M12 21 0,4
10990856 WBG-V 48 1,3 M16 25 0,6
10990860 WBG-V 64 2 M20 33 1,1
10990864 WBG-V 81 3,5 M24 40 2,7
10990870 WBG-V 99 5 M30 50 5,5
10990900 WBG 90 10 M36 54 4,6
10990902 WBG 98 13 M42 63 6,1
10990908 WBG 98 13 M48 68 6,3
10990912 WBG 120 22 M56 84 10,7
