Eye Foundry Hook Crosby A-1329

Crosby

Features:

  • Individually Proof Tested to 2-1/2 times the Working Load Limit with certification.
  • Suitable for use with Grade 100 and Grade 80 chain.
  • Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles.
  • Hook can be tip loaded at the reduced Working Load Limit. Operator must ensure the load is retained properly in the hook



  • Material: Forged Alloy steel - Quenched and Tempered.
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1
  • Grade: 10

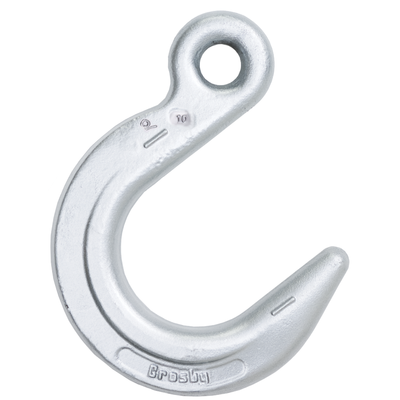

Eye Foundry Hook Platinum A-1329
Eye Foundry Hook Platinum A-1329

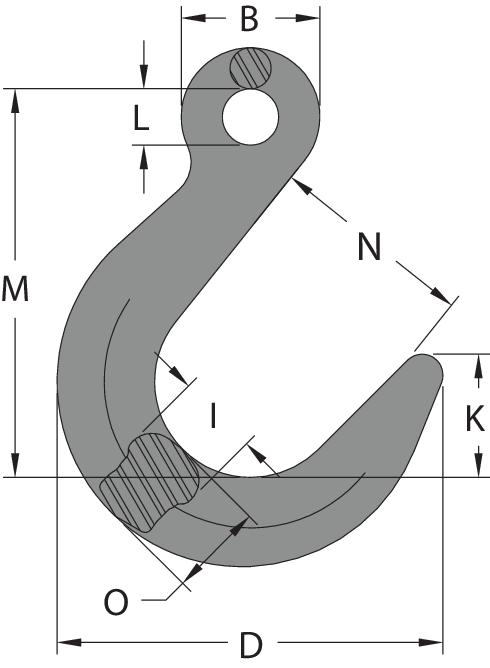

Eye Foundry Hook Platinum A-1329_drawing
Select a row from the table below, then click the add to quote button
Part Code WLL
ton		 Chain
mm		 WLL Tip of the Hook
ton		 B
mm		 D
mm		 I
mm		 K
mm		 L
mm		 M
mm		 N
mm		 O
mm		 Weight
kg		 CAD
11.161026280 2.6 7-8 1,3 39,6 122,4 22,4 39,9 16 122,2 63,5 28,7 0.91
155767 4 10 2,0 52,6 147,8 33 47,8 20,6 139,7 76,2 35,1 1.72
11.161026297 6.8 13 3,4 64,3 178,8 38,1 57,2 26,2 180,6 88,9 41,4 3.27
11.161026306 10.3 16 5,1 76,2 207,5 44,5 64,3 31,8 202,2 101,6 55,6 5.58
100521 16 18-20 8,0 104,9 245,1 55,9 86,1 50 273,1 127 61 10.4
11.161026324 21 22-23 10 121,2 280,2 69,1 95,0 57,9 311,2 139,7 78 18.4
11.161026333 27.1 26 13,5 135,4 302,3 71,9 99,8 65 339,6 152,4 84,1 23.5
11.161026342 41 32 20,5 167,9 336,6 88,9 110 80 387,4 165,1 97,5 38.3

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
