Spiral strand 1x7

  • Not for lifting
  • Left spiral strand
  • Right spiral strand
  • Galvanized
  • Heavy Galvanized
  • Not to be used with swivel

  • Rope construction: 1x7
  • Marking: According to standard
  • Standard: EN 12385-10
  • Fill factor: 0,78
  • Stay rope Information icon
  • Agriculture and livestock Information icon
  • Overhead line Information icon

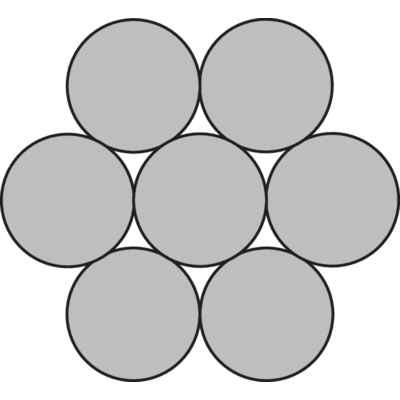

1x7[225mm]
1x7[225mm]
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm		 Steel Area
mm²		 Min. breaking force
kN
1570 N/mm²		 Weight
kg/100m
01.G52007025D 2.5 3.68 5.2 3.06
01.G52007030D 3 5.3 7.49 4.4
01.G52007035D 3.5 7.22 10.2 5.99
01.G52007040D 4 9.4 13.3 7.82
01.G52007050D 5 14.7 20.8 12.2
01.G52007060D 6 21.2 30 17.6
01.G52007070D 7 28.9 40.8 24
01.G52007080D 8 37.7 53.3 31.3
01.G52007090D 9 47.7 67.4 39.6
01.G52007100D 10 58.9 83.2 48.9
01.G52007110D 11 71.3 101 59.2
01.G52007120D 12 84.8 120 70.4
01.G52007130D 13 99.5 141 82.6
01.G52007140D 14 115 163 95.8
01.G52007160D 16 151 213 125
