SS 6x19-FC

  • Ordinary right hand lay
  • Stainless
  • Not to be used with swivel

Typical applications: Cranes, hoist blocks, lifts, wire rope slings.

  • Material: AISI 316.
  • Marking: According to standard
  • Standard: EN 12385-4
  • Fill factor: 0.45
  • Slings Sling wire rope
  • Overhead cranes For the use with overhead crane

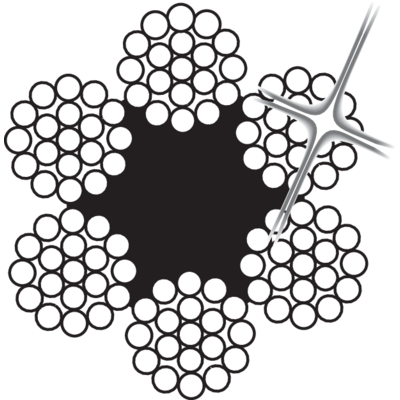

6x19-FC stainless[new] [Converted]_225mm
6x19-FC stainless[new] [Converted]_225mm
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm		 Steel Area
mm²		 Min. breaking force
kN
1570 N/mm²		 Weight
kg/100m
01.S10114030D 3 3,21 4,34 3,1
01.S10114040D 4 5,71 7,71 5,5
01.S10114050D 5 8,93 12 8,7
01.S10114060D 6 12,9 17,4 13
01.S10114070D 7 17,5 23,6 17
01.S10114080D 8 22,8 30,8 22
01.S10114090D 9 28,9 39 28
01.S10114100D 10 35,7 48,2 35
01.S10114120D 12 51,4 69,4 50
