Safety Shackle Pewag SSWI Stainless

pewag

Stainless steel safety shackle, drop-forged, stamped, tested, with added suspension bolt useable as end fitting in chain- and wire rope slings and pump chains for lifting of submersible pumps and breathers, with maximum safety, also under vibration (not directly mountable onto chain).

  • Material: Stainless steel.
  • Marking: Article and batch code.
  • Safety factor: 6:1
  • Grade: 6
SSWI G6 Safety Shackle SSWI Stainless Grade 6
SSWI G6
Select a row from the table below, then click the add to quote button

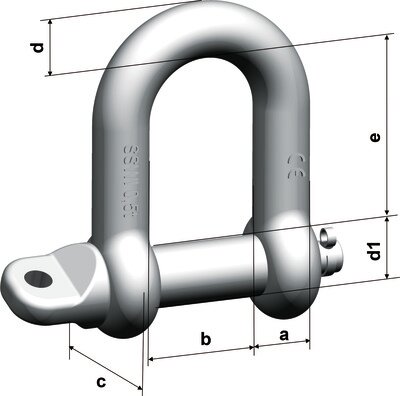

Part Code Code WLL
ton		 a
mm		 b
mm		 c
mm		 d
mm		 d1
mm		 e
mm		 Weight
kg		 CAD
11.3987036 SSWI 0,5 t-S 0.5 10 21 22 10 11 41 0.14
11.3962074 SSWI 0,63 t-S 0.63 8 21 18 8 9 35 0.08
11.3981731 SSWI 0,63 t-S-W 0.63 12 26 25 12 13 41 0.22
11.3962086 SSWI 0,9 t-S 0.9 8 18 18 8 9 33 0.07
11.3987039 SSWI 1,25 t-S 1.25 18 42 46 18 21 78 1
11.3962090 SSWI 1,6 t-S 1.6 15 36 32 15 17 62 0.52

Other sizes and special models available on request!

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
