• Not for lifting

Stainless shackle not made for lifting.

  • Material: AISI 316 (AISI 304 on demand)
  • Marking: CE-marked, Size, material
  • Finish: Bright
  • Grade: 6
Select a row from the table below, then click the add to quote button

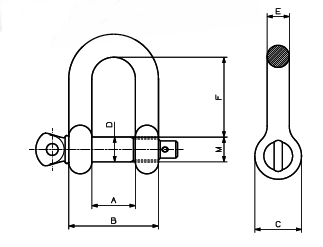

Part Code Size
mm
A
mm
D
mm
H
mm
L
mm
Weight
kg
CAD
11.56A521B04 4 8 4 24 16 0.01
11.56A521B05 5 10 5 30 20 0.02
11.56A521B06 6 14 6 37 26 0.03
11.56A521B08 8 16 8 48 32 0.07
11.56A521B10 10 20 10 64 45 0.13
11.56A521B12 12 25 12 72 48 0.22
11.56A521B14 14 29 14 88.5 63 0.31
11.56A521B16 16 34 16 96 64 0.38
11.56A521B20 19 40 19 114 76 0.69
11.56A521B22 22 47 22 143 96 1.2
11.56A521B25 25 50 25 150 100 1.3
11.56A521B28 28 56 28 168 112 3
11.56A521B32 32 64 32 192 128 4.17

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
