Standard Reeve Crane Blocks 1 Sheave

General:
- Standard Reeve Crane Blocks may be used on a wide variety of land based cranes such as mobile and crawler cranes. They are an excellent choice where frequent easy block change is not a required main feature, or lifting height is limited.
- Double sealed maintenance free roller bearings.
- Design Factor of Safety of 4:1.
- Forged high tensile steel DIN hooks.
- Ductile iron sheaves, featuring graphite lubricated groove.
- High impact resistant side plates.
- Operational temperature range -40 up to +80°C.
- Lubrication on hook suspension.
- Short design for increased lifting height.
- Safety latch with locking pin.
- C3M finish in signal yellow.

Options:
- Double hook.
- Double hook with shackle hole.
- Quad hook.
- Shackle stud eye.

Important:
Inquiries for custom versions are welcome!

Product Picture 1
Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to quote button

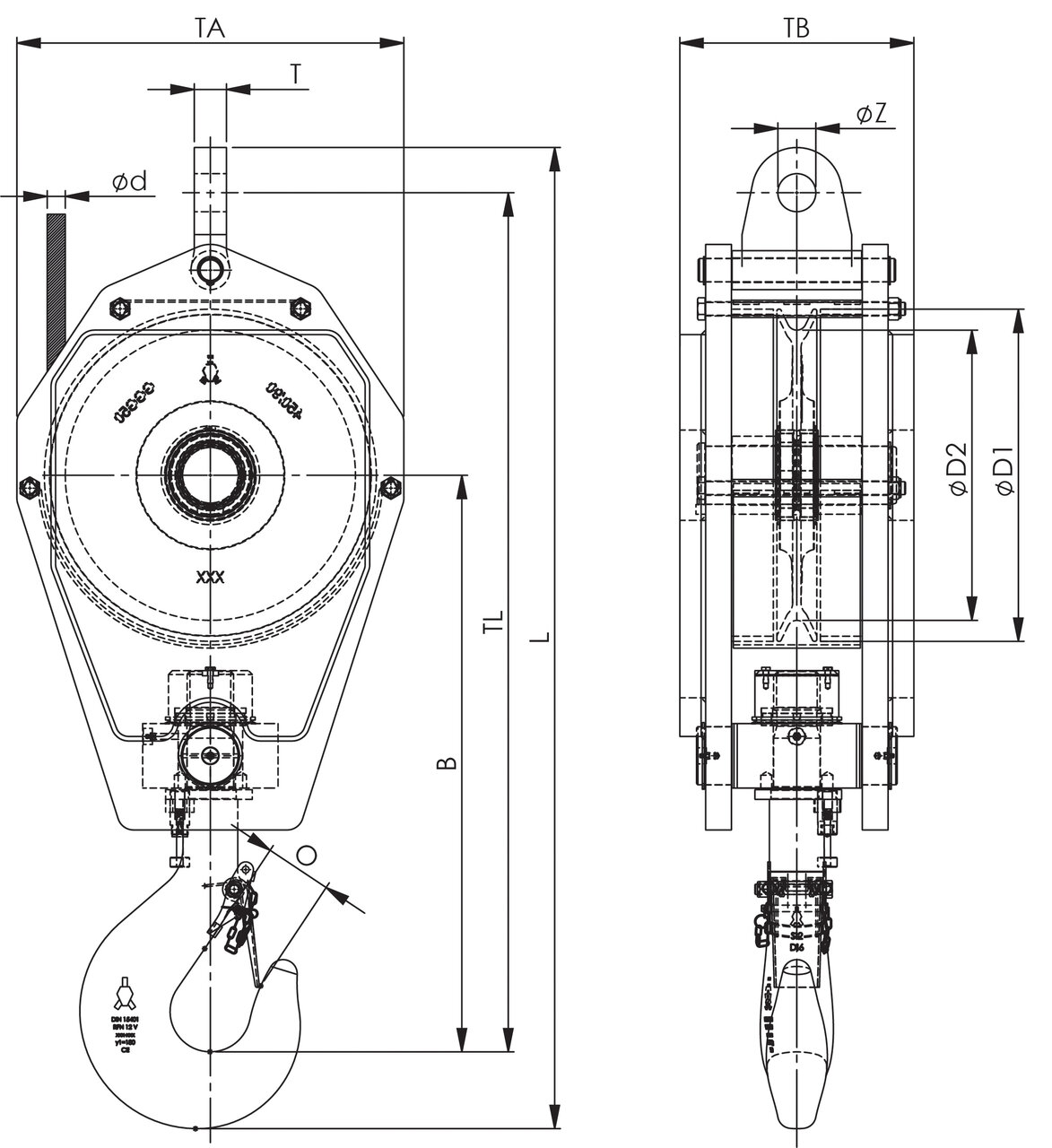

WLL
ton		 Model no. For wire Ø
mm		 Hook size Ø D1
mm		 Ø D2
mm		 B
mm		 O
mm		 TA
mm		 TB
mm		 TL
mm		 L
mm		 T
mm		 Ø Z
mm		 Weight
kg		 CAD
12.5 SRB 225 .14 .1 .12,5 .E 14 5 260 225 523 55 345 170 798 913 28 32 75
12.5 SRB 260 .14 .1 .12,5 .E 14 5 300 260 548 55 400 185 833 948 28 32 110
12.5 SRB 260 .16 .1 .12,5 .E 16 5 300 260 548 55 400 185 833 948 28 32 110
16 SRB 225 .14 .1 .16 .E 14 5 260 225 548 55 345 180 823 938 28 32 100
16 SRB 260 .16 .1 .16 .E 16 5 300 260 548 55 400 185 833 948 28 32 110
16 SRB 285 .16 .1 .16 .E 16 6 320 280 608 57 420 165 908 1,033 28 32 160
16 SRB 320 .16 .1 .16 .E 16 6 365 320 628 59 450 205 951 1,076 28 32 160
16 SRB 320 .19 .1 .16 .E 19 6 365 320 628 59 450 205 951 1,081 35 37 160
16 SRB 355 .16 .1 .16 .E .A 16 6 410 355 668 59 500 195 1,013 1,138 28 32 180
16 SRB 355 .19 .1 .16 .E 19 6 410 355 668 59 500 195 1,013 1,138 28 32 180
20 SRB 355 .19 .1 .20 .E 19 10 410 355 713 76 500 225 1,053 1,204 35 37 225
29 SRB 400 .22 .1 .29 .E 22 8 460 400 743 69 570 240 1,128 1,273 40 43 290
32 SRB 450 .26 .1 .32 .E .A 26 10 515 450 833 76 600 350 1,256 1,422 45 52 455
32 SRB 450 .24 .1 .32 .E .A 24 10 515 450 833 76 600 350 1,256 1,422 45 52 455
32 SRB 450 .24 .1 .32 .E .B 24 10 515 450 833 76 600 410 1,256 1,422 45 52 590
32 SRB 450 .26 .1 .32 .E .B 26 10 515 450 833 76 600 410 1,256 1,422 45 52 590
40 SRB 450 .24 .1 .40 .E .B 24 12 515 450 1,074 84 600 410 1,487 1,665 45 52 590
40 SRB 450 .26 .1 .40 .E 26 12 515 450 918 84 605 323 1,338 1,516 45 52 590
50 SRB 528 .24 .1 .50 .E 24 16 596 528 934 97 710 353 1,412 1,604 45 52 725
50 SRB 528 .26 .1 .50 .E 26 16 596 528 934 97 710 353 1,412 1,604 45 52 725
50 SRB 528 .28 .1 .50 .E 28 16 595 528 934 97 710 353 1,412 1,614 50 59 725
50 SRB 575 .28 .1 .50 .E 28 16 650 575 958 97 770 333 1,459 1,661 50 59 930
63 SRB 630 .32 .1 .63 .E 32 16 720 630 985 97 825 353 1,521 1,728 60 66 1,000
63 SRB 670 .28 .1 .63 .E 28 16 760 670 1,173 97 870 473 1,738 1,940 50 59 1,800
63 SRB 670 .32 .1 .63 .E 32 16 760 670 1,173 97 870 473 1,738 1,945 60 66 1,800

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
