Polyester simple sleeve round sling Turbo.



  • Material: Fiber core and sleeve : 100% polyester high tenacity multifilament fibers.
  • Marking: According to standard, Manufacturer’s symbol, working load limit (WLL), effective working length, CE marking, batch number, handling instructions.
  • Temperature range: From -40°C to +100°C.
  • Standard: EN 1492-2
  • Note: Storage : Store in a cool, dry and protected from sunlight area. Maintenance : Never dry sling near a fire or any source of heat.
  • Warning: Ensure that sling is protected from any sharp corners and/or abrasive surfaces, use either protective polyester, polyurethane sleeves or coatings. DO NOT USE DAMAGED SLINGS.
  • Safety factor: 7:1

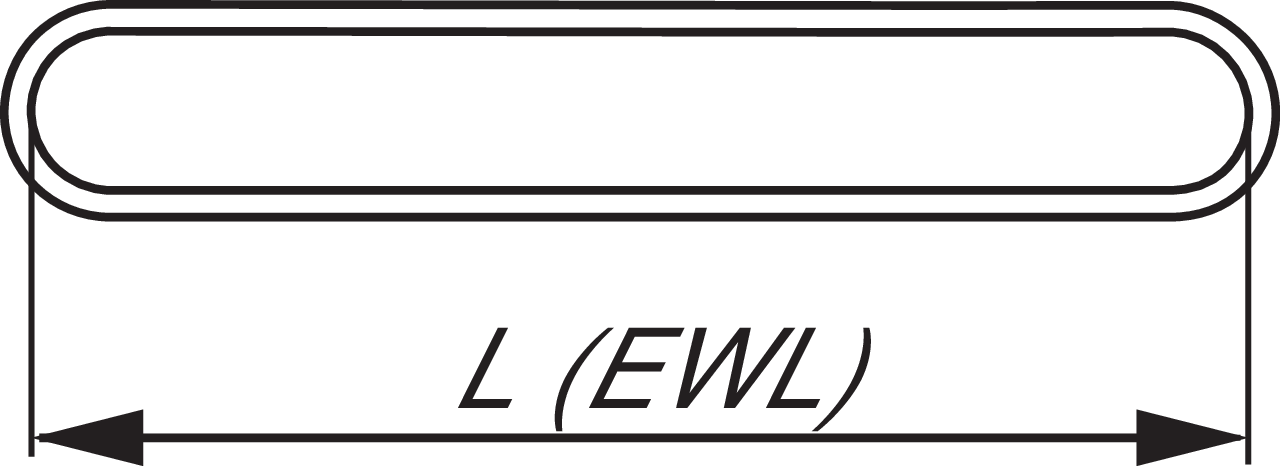

Length-ewl_e_225mm_2
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
CAD
12.20ERT/01 1
12.20ERT/02 2
12.20ERT/03 3
12.20ERT/04 4
12.20ERT/05 5
12.20ERT/06 6
12.20ERT/08 8
12.20ERT/10 10
