Round sling – Extra Strengthned
Extra-reinforced sleeve for a better resistance to tear and wear, abrasion, puncture.
Sleeve constituted of woven strands with extra thickness (relief patterns) for more resistance. Configuration: Endless sling including a bearing fiber core in textile wire totally protected in a woven sleeve

  • Material: Fiber core and sleeve : 100% polyester high tenacity multifilament fibers.
  • Marking: According to standard, Manufacturer’s symbol, working load limit (WLL), effective working length, CE marking, batch number, handling instructions.
  • Temperature range: From -40°C to +100°C
  • Finish: High resisting blue pvc label sewn on the sling.
  • Standard: EN 1492-2
  • Note: Instructions of use : Ensure that sling is protected from any sharp corners and/or abrasive surfaces, use either protective polyester, polyurethane sleeves or coatings.
  • Safety factor: 7:1

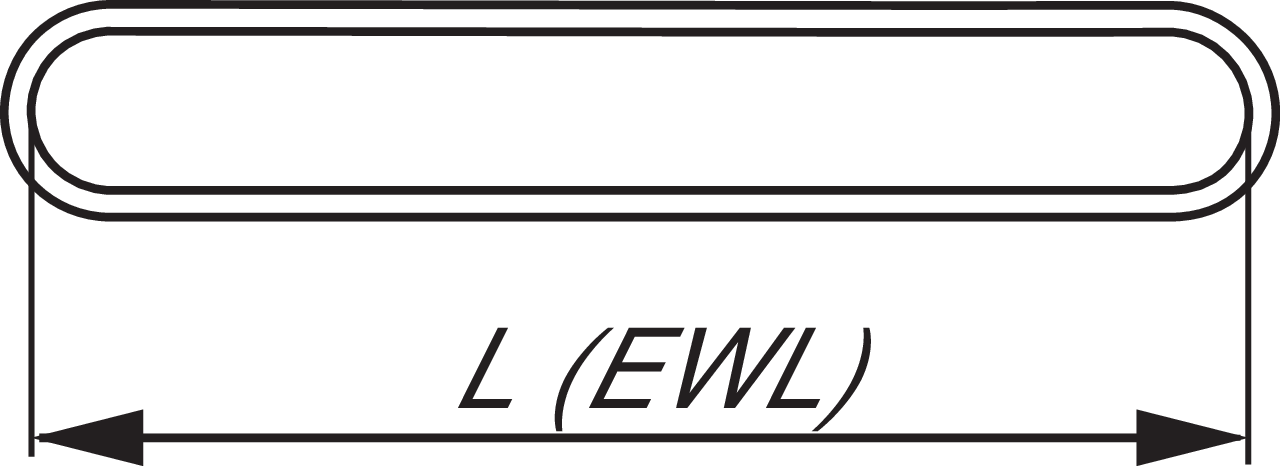

Length-ewl_e_225mm_2
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
WLL Straight Lift
ton
Choke Hitch
ton
Basket Hitch 0°
ton
WLL 0-45°
ton
WLL 45-60°
ton
Colour Weight
gr
CAD
12.11ESM/1 15 1 0.8 2 1.4 1 violet 0.27
12.11ESM/2 20 2 1.6 4 2.8 2 Green 0.5
12.11ESM/3 25 3 2.4 6 4.2 3 yellow 0.64
12.11ESM/4 30 4 3.2 8 5.6 4 grey 0.87
12.11ESM/5 35 5 4 10 7 5 Red 1.07
12.11ESM/6 40 6 4.8 12 8.4 6 brown 1.27
12.11ESM/8 45 8 6.4 16 11.2 8 Blue 1.66
12.11ESM/10 90 10 8 20 14 10 Orange 2.3
