• Not for lifting

General: Turnbuckle for general use.

Terminals: Eye/hook. Other terminals as per separate order.
Standard: DIN 1480.

  • Finish: Hot-dip galvanized.
turnbuckle_eye_hook

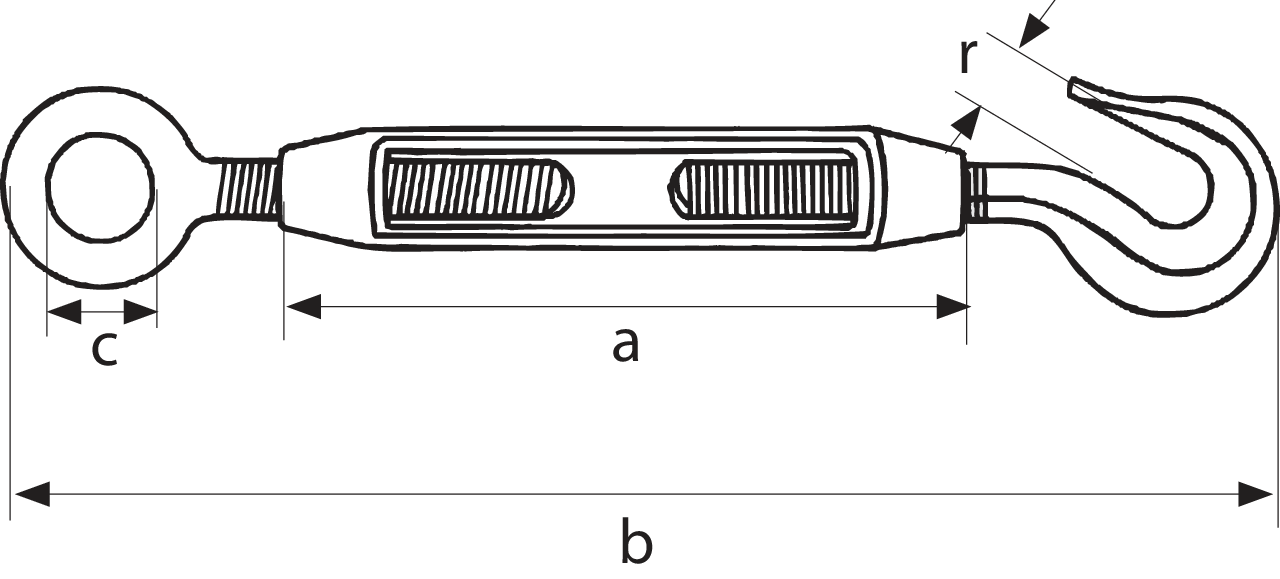

turnbuckle_eye_hook_measure
Select a row from the table below, then click the add to quote button
Part Code Code Thread b min-max A
mm
r
mm
C
mm
Weight
kg/100pc
CAD
04.1906SK1480 VR06SK1480 M6 172 - 252 110 8,5 9 9.5
04.1908SK1480 VR08SK1480 M8 182 - 257 110 11,0 10 16.5
04.1910SK1480 VR10SK1480 M10 213 - 298 125 13,5 14 29
04.1912SK1480 VR12SK1480 M12 238 - 318 125 15,5 16 43
04.1914SK1480 VR14SK1480 M14 263 - 353 140 18,5 18 62
04.1916SK1480 VR16SK1480 M16 320 - 430 170 19,0 22 92
04.1920SK1480 VR20SK1480 M20 367 - 497 200 20,5 24 163
04.1922SK1480 VR22SK1480 M22 398 - 543 220 26,0 27 220
04.1924SK1480 VR24SK1480 M24 447 - 617 255 26,0 27 300
04.1930SK1480 VR30SK1480 M30 512 - 662 255 33,0 31 460
04.1936SK1480 VR36SK1480 M36 568 - 748 295 44,0 43 768
