pewag

Ratchet for a two part chain lashing system, with lashing chain ZKW. Variable positioning possible. 25% higher lashing capacity than grade 8 ratchet.

  • Material: Alloy steel grade 10.
  • Marking: According to standard, CE-marked, Pewag or PW, winner 10, H16, batch code and type.
  • Finish: Orange powder coated.
  • Standard: EN 12195-3
  • Grade: 10
Loadbinder

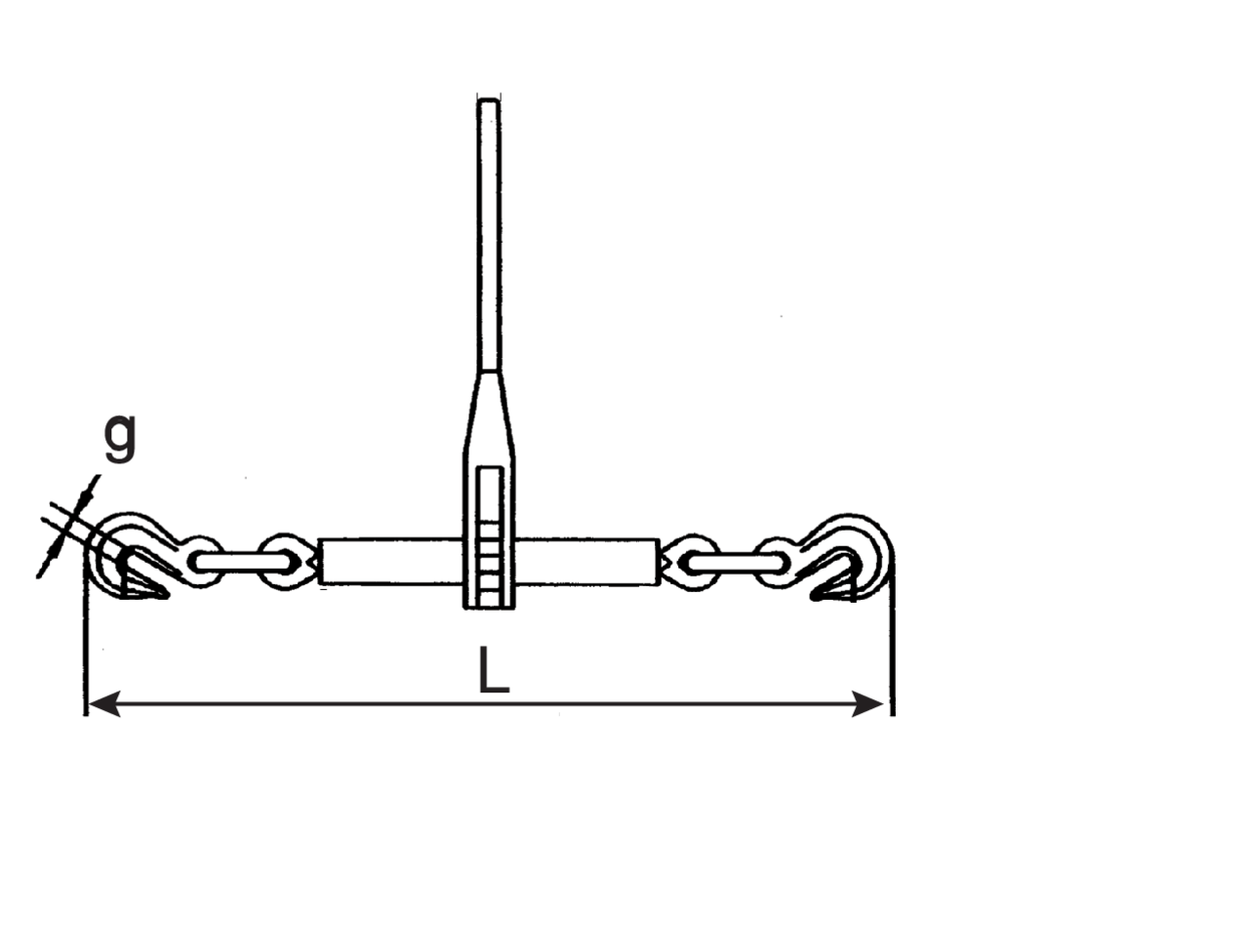

Load binder RSPSW dwg
Select a row from the table below, then click the add to quote button
Part Code Code LC
kN
STF
daN
Tension range
mm
Lever length
mm
Marking L closed L open g
mm
Weight
kg
14.1087720 RSPSW 8 50 1 900 145 237 Type A 609 754 11 4,4
157709 RSPSW 10 80 3 000 145 355 Type B 663 808 13 6,3
154476 RSPSW 13 134 2 500 290 359 Type C 954 1 244 17 15
Also usable with 7 mm chain. LC with 7 mm chain = 38 kN.
