pewag
  • Not for lifting

Load binder for two-part lashing systems, with pre-mounted shortening hooks with safety catch.

  • Material: Alloy steel
  • Marking: According to standard, CE-marked, Pewag or PW, winner pro or 12, H16, batch code and type.
  • Finish: Light blue powdercoated.
  • Standard: EN 12195-3
  • Warning: Not to be heat-treated.
  • Safety factor: 2:1
  • Grade: 12
RSPSWP_Ratschenspanner_ohne_Mae

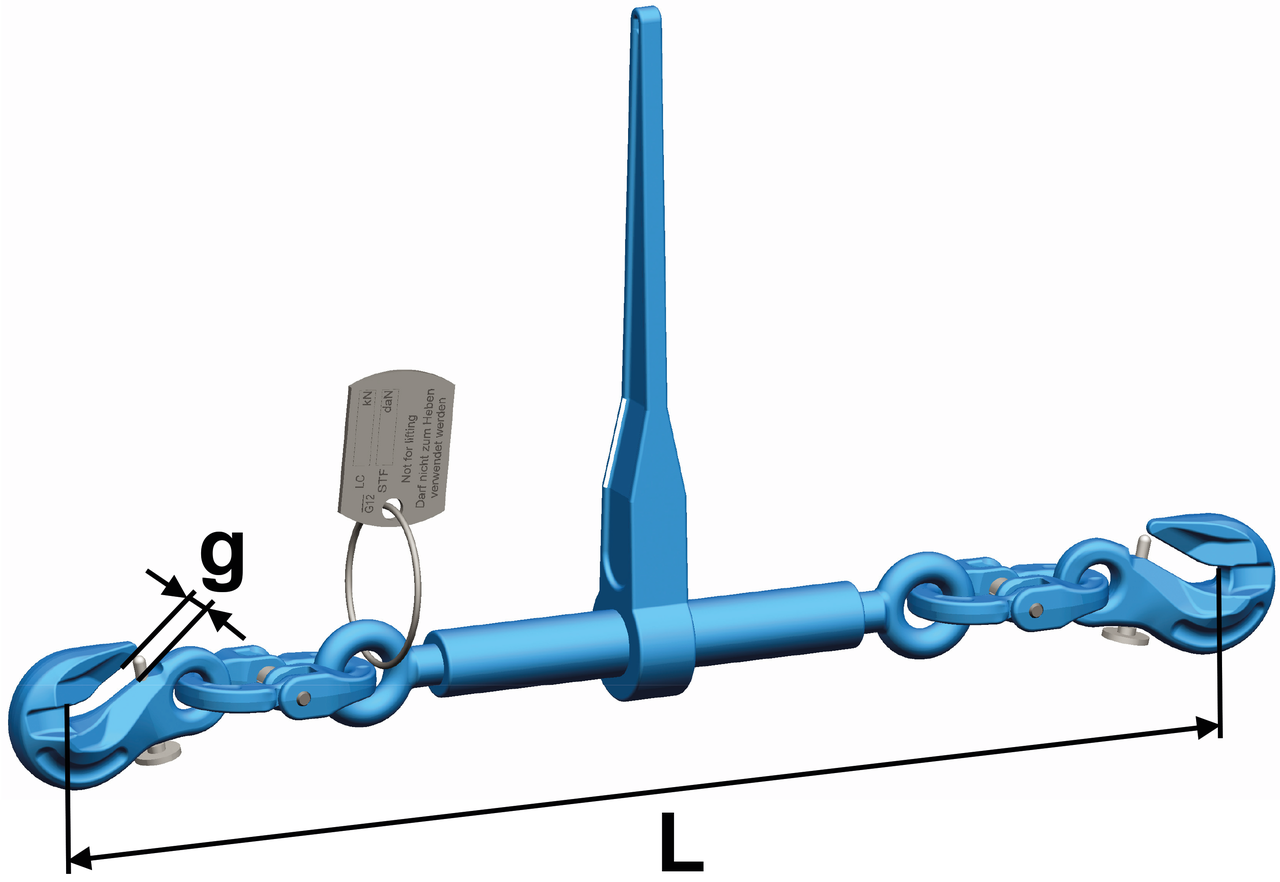

RSPSWP Load binder_Bemassung
Select a row from the table below, then click the add to quote button
Part Code Code LC
kN
Lever length
mm
STF standard tension force
daN
Length closed L Length open L Tension range
m
Jaw g Weight
kg
CAD
14.1089138 RSPSWP 7 47 237 1,900 586 741 155 10 4.6
14.1089139 RSPSWP 8 60 237 1,900 600 755 155 10 4.9
152087 RSPSWP 10 100 355 3,000 674 829 155 13 6.7
14.1089141 RSPSWP 13 160 359 2,500 981 1.278 297 17 15.7

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
