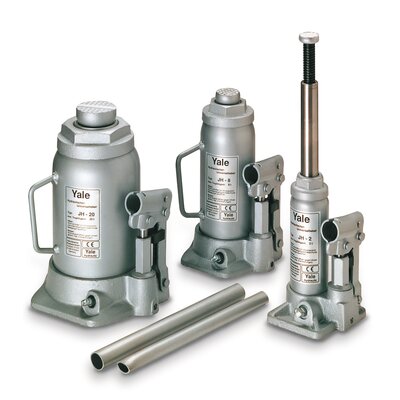

Universal jack

Capacity from 2 to 50 tons.

- Robust construction for use in the most severe working conditions.

- Ideal for maintenance services or garages for lifting heavy equipment.

- Ergonomic lever, two parts assembled by clip.

- Precise controlled lowering, easily operated with the lever.

- Large base plates and grooved saddle for increased stability

  • Material: Steel
  • Marking: CE-marked
Universal jack
Select a row from the table below, then click the add to quote button
Part Code WLL
ton		 Lifting height max
mm		 Lift height
mm		 Overall height
mm		 Weight
kg		 CAD
16.35JH-2B 2 348 115 183 2.6
16.35JH-4B 4 391 127 204 4.2
16.35JH-6B 6 427 133 219 4.6
16.35JH-8B 8 450 152 228 5.8
16.35JH-12B 12 473 153 240 7.9
16.35JH-20B 20 475 153 242 12.5
16.35JH-30 30 460 180 280 22
16.35JH-50-2 50 480 180 300 34

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
