Pulling Cylinder HPJ S

General:
- Max. working pressure: 720 bar/ 72 Mpa
- Acting type: single
- Return type: spring
- Compact
- Usable in all positions
- Protected against ejection of plunger
- Protected against overpressure

Standard supplied with:
- High Flow female coupler A 418 with pressure relief valve

Available on request:
- Cylinders manufactured in conformity with customer specifications
- Collar thread


- Protection spring to be ordered separately

  • Material: steel
  • Note: - Pulling eyes, clevis eyes to be ordered separately (2 pcs per cylinder)
Product Image 1
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

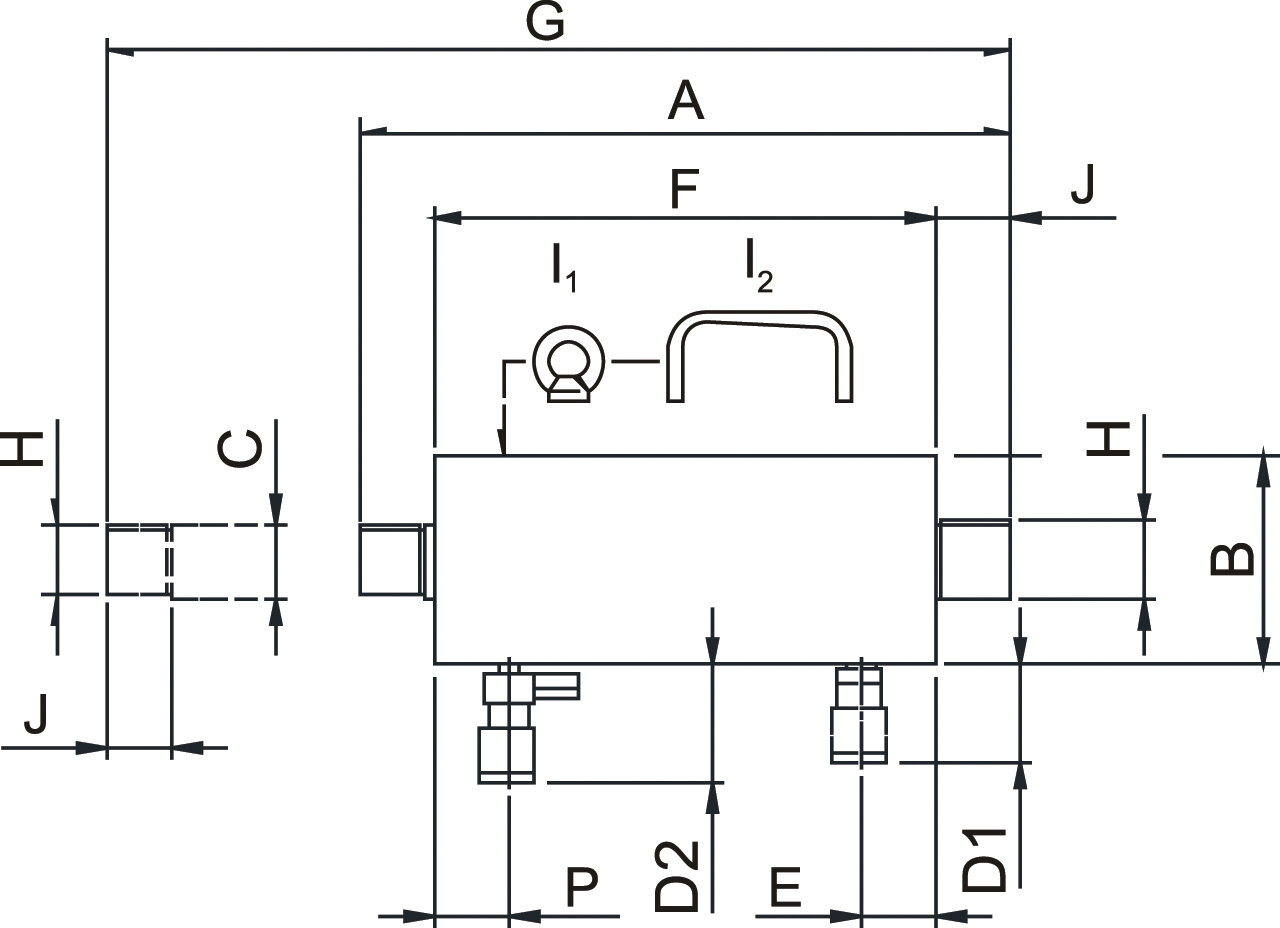

Part Code Model tonnage tons stroke length
mm		 A
mm		 B
mm		 C
mm		 D2
mm		 F
mm		 G
mm		 H tread size J
mm		 P
mm		 Weight
kg		 CAD
16.40100131001 HPJ 11 S 15 11 150 320 92 40 85 250 470 M38x1.5 30 38 11.5
16.40100131011 HPJ 30 S 15 30 150 470 118 40 85 380 620 M38x1.5 40 44 26
16.40100131021 HPJ 60 S 15 60 150 530 157 60 85 400 680 M54x1.5 60 52 45

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
