General:
- Max. working pressure: 720 bar/ 72 Mpa
- Acting type: single
- Return type: gravity
- Usable in all positions
- Safe becuase of mechanical load locking
- Suitable for sustained load
- Flat saddle. Prevents damage to the plunger and is easy to replace with tilting saddle.



Standard supplied with:
- High Flow female coupler A 118
- flat saddle

Available on request:
- Cylinders manufactured in conformity with customer specifications
- Collar thread
- Base mounting holes

  • Material: steel
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

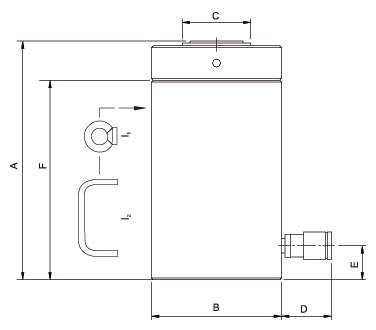

Part Code Model Stroke
mm
Closed height
mm
tonnage t Capacity
kN/t
I type A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
Weight
kg
16.40100082003 HJ 10 G 15 SN 150 270 10 99.3 / 10.1 270 60 42 70 25 242 5,9
16.40100082002 HJ 25 G 15 SN 150 283 25 238.9 / 24.4 I2 283 90 65 70 25 257 14
156068 HJ 50 G 15 SN 150 307 50 510.3 / 52 I2 307 135 95 70 25 272 34
16.40100082000 HJ 100 G 15 SN 150 323 100 1029.3 / 105 I1 323 190 135 70 25 287 71
16.40100112136 HJ 150 G 15 SN 150 363 150 1538.9 / 156.9 I1 363 212 165 70 35 305 101
16.40100112083 HJ 250 G 15 SN 150 385 150 2493.8 / 254.3 I1 385 300 210 70 40 330 180
