Hollow Plunger Cylinder HHJ H

General:
- Max. working pressure: 720 bar/ 72 Mpa
- Acting type: double
- Return type: hydraulic
- Usable in all positions
- Protected against ejection of plunger
- Protected against overpressure on return side
- Hollow saddle prevents damage to the plunger. Easy to replace

Standard supplied with:
- High Flow female coupler A 118 on inlet port
- High Flow female coupler A418 with pressure relief valve on outlet port
- Hollow saddle

Available on request:
- Cylinders manufactured in conformity with customer specifications
- Collar thread
- Base mounting holes

  • Material: steel
Hollow Plunger Cylinder HHJ H
Product Image 2
Select a row from the table below, then click the add to quote button

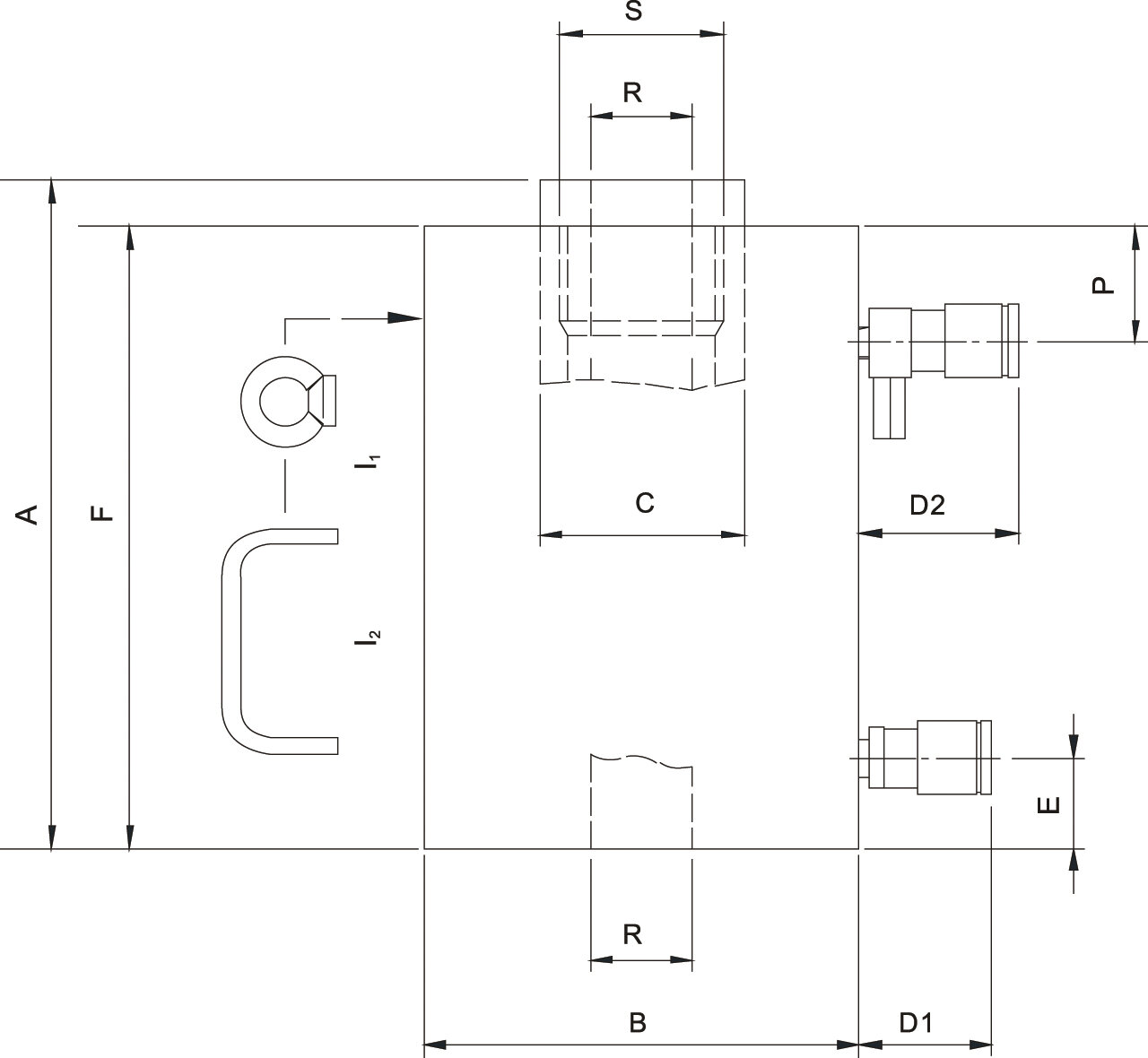

Part Code Model tonnage tons stroke length
mm		 Closed height
mm		 A
mm		 B
mm		 C
mm		 D1
mm		 D2
mm		 E
mm		 F
mm		 P
mm		 R
mm		 S thread size Weight
kg		 CAD
16.40100.122.045 HHJ 30 H 15 30 150 285 285 120 70 70 85 40 275 50 33 M50x1,5 23
159798 HHJ 60 H 20 60 200 334 334 166 80 70 85 41 319 39 45 M65x1,5 40
16.40100.122.051 HHJ 100 H 10 100 100 265 265 210 100 70 85 52 245 55 54 M72x2 53
16.40100.122.053 HHJ 100 H 20 100 200 395 395 210 100 70 85 52 375 75 54 M72x2 78

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
