General: Crane forks model TKG vhs - Capacity 200 - 5000 kg
These crane forks are equipped with adjustable tines, height adjustability and an automatic balancing system.
Crane forks with automatic balancing* tend to point their tines upward when being transported. This prevents the load from unintentionally slipping off the tines. The shackle is movable and runs on a track depending on the load. The automatic balancing engages by a pressurized gas spring once the forks are loaded. The load will always be in the center of gravity of the forks, ensuring a safe transport.  All models comply with the latest standards and CE-directives.

Features:
• Maintenance-free
• Highly visible safety colour
• For the transport of rings or coils, the fork tines are simply pushed together.
• Easily adjustable tines for all pallet sizes

  • Marking: CE-marked
  • Note: A minimum load of 20% of the WLL is needed for the automatic balancing system to work.
  • Warning: The load must not exceed the fork length. For the transport of loads above persons (e.g. on construction sites) appropriate security measures against falling loads or parts must be taken.
  • Safety factor: 4:1

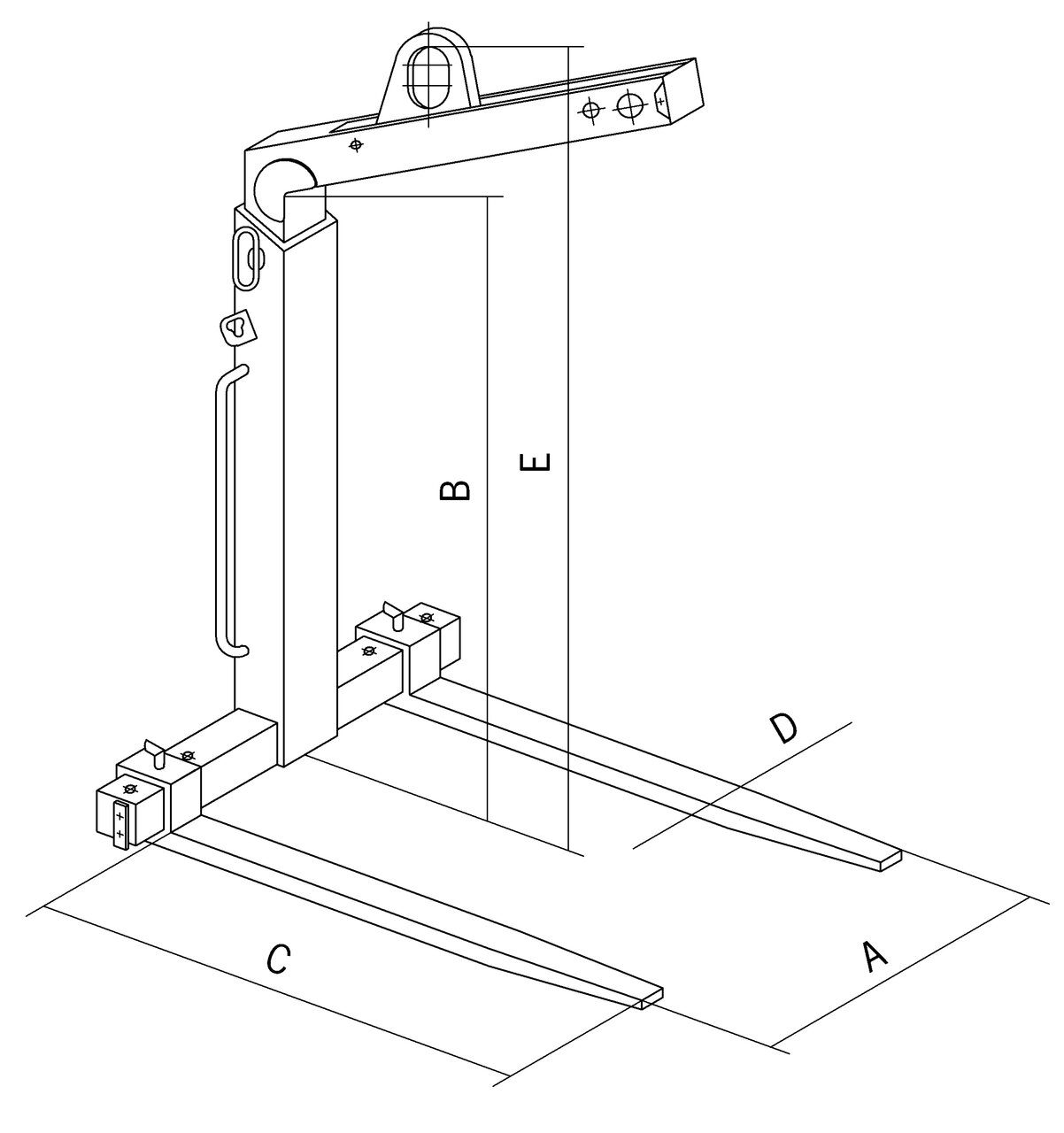

TKG VHS picture
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Model Capacity
kg
A
mm
B
mm
C
mm
D
mm
E
mm
Weight
kg
CAD
13.30TGK10VHS 1 TKG 1,0 vhs 200 - 1000 350-900 1100-1600 1,000 100x30 1420-1920 128
13.30TGK15VHS 1.5 TKG 1,5 vhs 300 - 1500 350-900 1300-2000 1,000 100x40 1650-2350 158
13.30TGK20VHS 2 TKG 2,0 vhs 400 - 2000 400-900 1300-2000 1,000 120x40 1655-2355 203
13.30TGK30VHS 3 TKG 3,0 vhs 600 - 3000 450-900 1300-2000 1,000 120x50 1720-2420 260
13.30TGK40VHS 5 TKG 5,0 vhs 1000 - 5000 500-1000 1300-2000 1,000 150x60 1710-2410 413
