pewag

General: For lifting, handling and moving of steel (oil)drums, where the drums have to stay in a vertical position. These VKHW clamps should preferably be used only with closed drums. Capacity 0.6 tons.


Product Picture 1

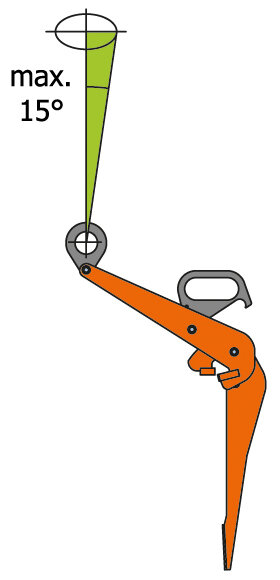

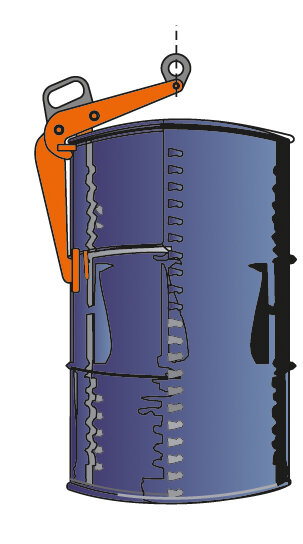

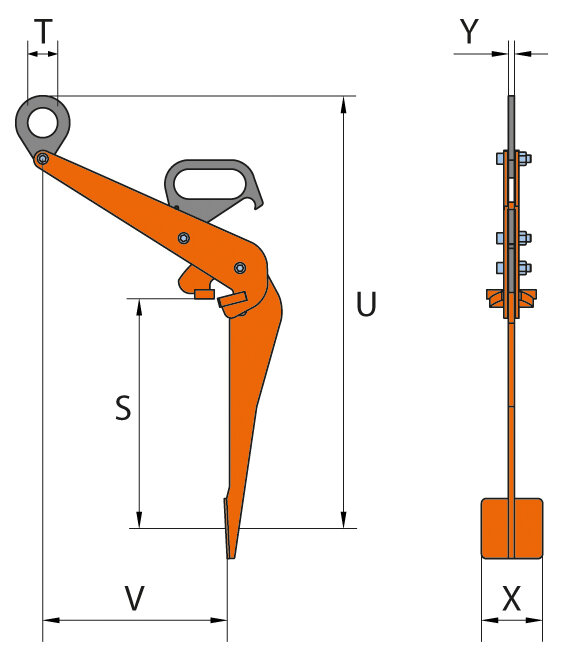

Pewag VKHW drawing Pewag VKHW load diagram Pewag VKHW drawing application
Select a row from the table below, then click the add to quote button
Part Code Code WLL Hole diameter
mm
X
mm
Y
mm
U
mm
S
mm
V
mm
T
mm
Weight
kg
16.11VKHW0.6t VKHW 0.6 t 0,6 305 100 10 765 434 305 50 7
