General: Only one clamp is needed for different kind of jobs. Also the same clamp can be used if a big jaw opening is necessary. For lifting and moving of steel plates and structures from all positions. Jaw opening from 0 - 95 mm. Adjustable by steps of 30 mm. Capacity 3,000 kg. Strong and lightweight construction.
Minimum WLL is 10% of the maximum WLL.

Product Image 1

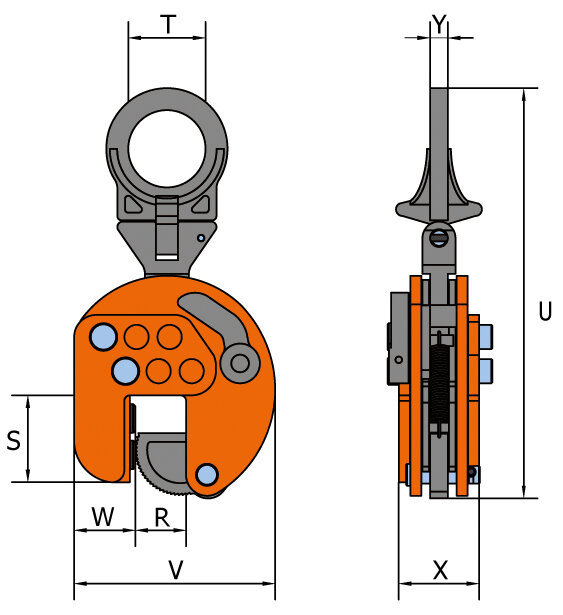

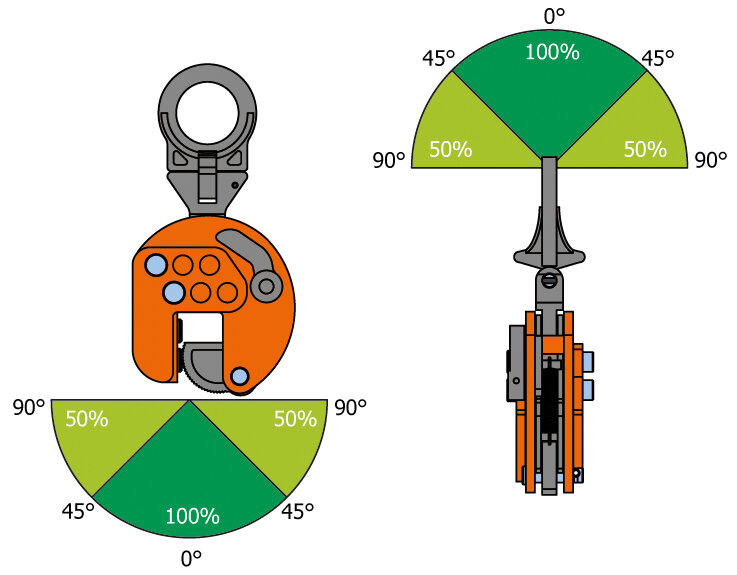

Pewag VEUW-A drawing Pewag VEUW-A load diagram
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Jaw width
mm
X
mm
Y
mm
S
mm
T
mm
U
mm
V
mm
W
mm
Weight
kg
16.01VEUW-A3t VEUW-A 3 t 3 0-95 77 16 79 70 373 183-243 51 10
