TLW special grab - Traction Levage

Home / PRODUCTS / LIFTING DEVICES / CLAMPS / TLW special grab

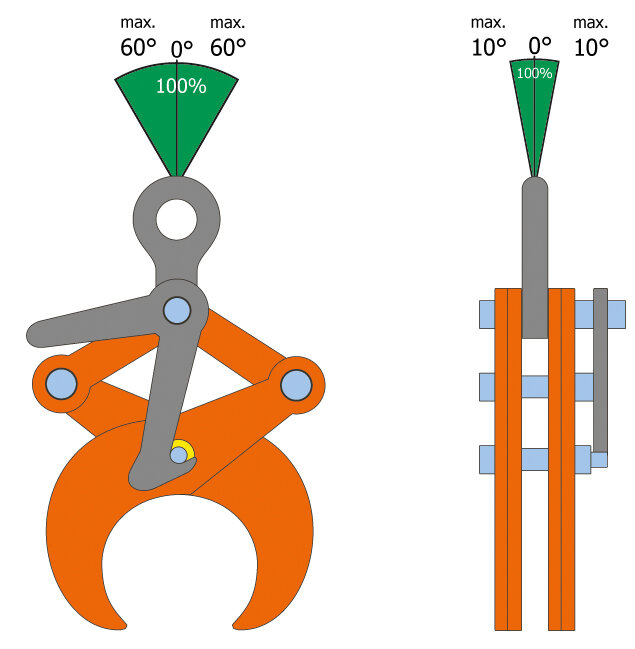

General: For vertical lifting of tubes, bundles of tubes and solid round material.

Select a row from the table below, then click the add to quote button

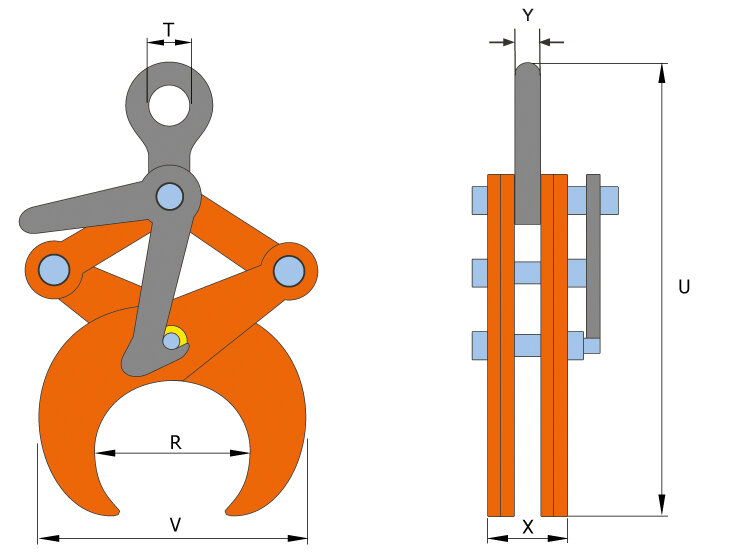

Part Code	Code	WLL ton	Jaw width mm	X mm	Y mm	V min-max	U min-max	T mm	Weight kg
16.01TLW0.5t	TLW 0.5 t	0.5	48.3-114.3	47	15	146-207	300-400	45	4.5
16.01TLW1t	TLW 1 t	1	114.3-219.1	47	15	110-170	430-615	45	9
16.01TLW2t	TLW 2 t	2	219.1-368	56	16	490-610	670-955	64	31
16.01TLW3t	TLW 3 t	3	368-508	56	16	590-710	875-1165	64	39

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD

Download
