General: For use as a temporary lifting point in any room where HP-profile is being used, such as sectional ship parts and ship engine rooms. The BSW clamp is equipped with a thread spindle for attaching the clamp. The clamp is used for HP-100 to HP-240 (HP = Hollandprofile)

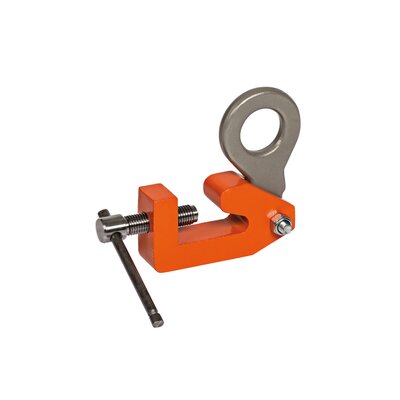

Product Picture 1

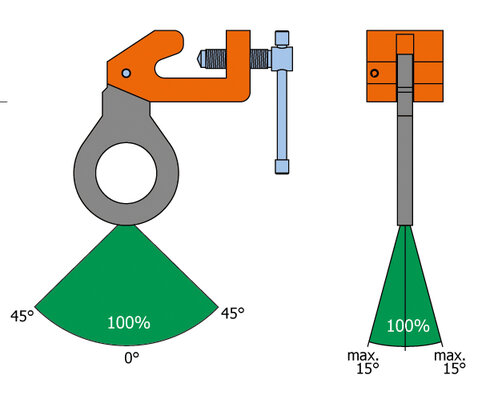

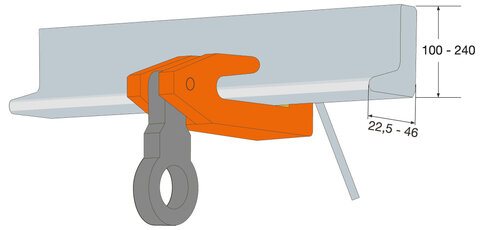

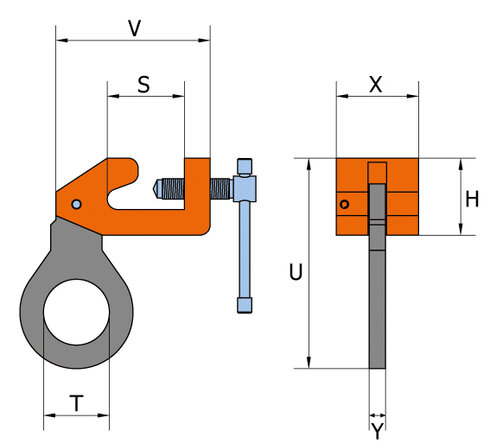

Pewag BSW drawing Pewag BSW load diagram Pewag BSW drawing 2
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Jaw width
mm
X
mm
Y
mm
V
mm
S
mm
T
mm
U
mm
H
mm
Weight
kg
CAD
16.11BSW1.5t BSW 1.5 t 1.5 100-240 40 16 150 74 45 180 75 2.9
16.11BSW3t BSW 3 t 3 100-240 80 16 150 75 65 205 75 6
