Pad Eyes Type S

General:
- Certificates S355J2G3, EN 10204 3.1 supplied as standard
- T≥ 75% of inside width of shackle.
- H≤ 106% of diameter of pin.

Product Image 1
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

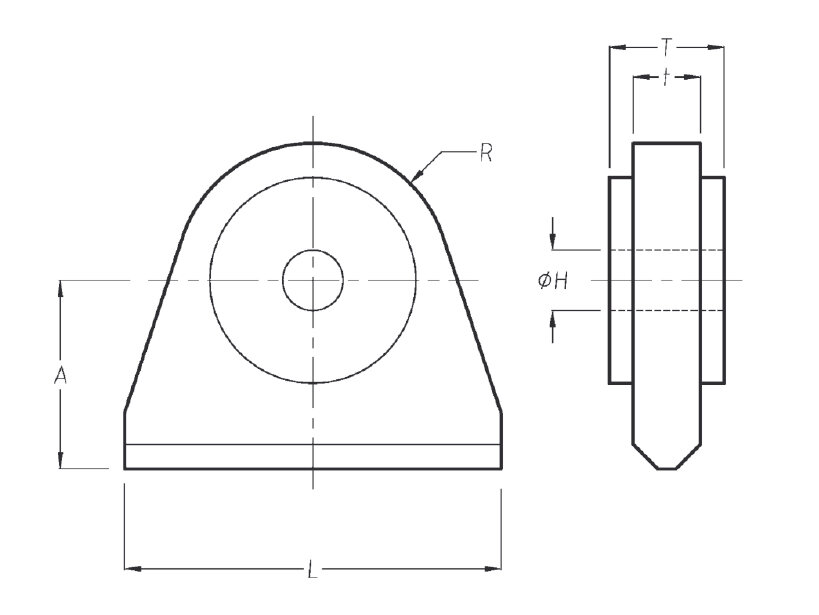

Part Code WLL
ton		 Diameter
mm		 Type No. Shackle size L
mm		 A
mm		 Ø H
mm		 R
mm		 t
mm		 T
mm		 Weight
kg		 CAD
11.4453001000S 1 9 - 10 S 3/8 76 32 11.5 26 14 14 0.3
11.4453001500S 1.5 9 - 10 S 7/16 90 32 13.5 32 15 15 0.5
11.4453002000S 2 12 - 13 S 1/2 100 38 17 35 18 18 0.7
11.4453003250S 3.25 19 S 5/8 115 45 20 38 22 22 1.5
11.4453004750S 4.75 19 S 3/4 140 51 23 45 25 25 2
11.4453006500S 6.5 25 - 26 S 7/8 150 57 26 51 30 30 3
11.4453008500S 8.5 25 - 26 S 1 180 64 29.5 64 35 35 5
11.4453009500S 9.5 25 - 26 S 1 1/8 203 76 33.5 76 40 40 7.5
11.4453012000S 12 32 S 1 1/4 216 83 37 83 45 45 10
11.4453013500S 13.5 32 S 1 3/8 228 89 40 89 30 50 10
11.4453017000S 17 35 S 1 1/2 280 140 44 102 40 50 18
11.4453025000S 25 41 - 42 S 1 3/4 305 140 53 121 40 60 23
11.4453035000S 35 51 S 2 356 153 60 133 50 70 35
11.4453055000S 55 63 - 64 S 2 1/2 482 165 74 152 50 90 55
11.4453085000S 85 76 - 77 S 3 559 203 87 178 60 110 90
11.4453120000S 120 95 - 96 S 3 1/2 711 254 100 229 70 120 170
11.4453150000S 150 102 S 4 813 280 114 254 80 150 250

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
