Pump Chain Pewag PCWI Stainless

pewag

Application for submersible pumps and breathers in the water and waste water area.

  • Material: 1.4404 (AISI 316L), 1.4462 (AISI 318LN).
  • Finish: Bright polished.
  • Safety factor: 4:1
  • Grade: 6
PCWI-Fore Pump Chain Stainless G6
PCWI in use_2
PCWI pic_2
PCWI in use_1

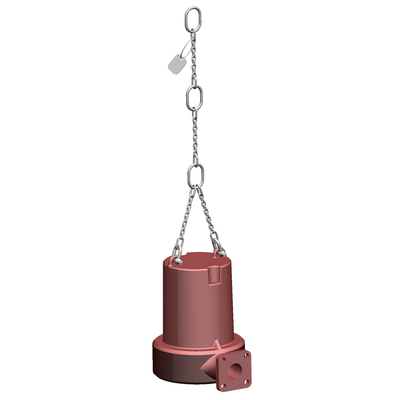

PCWI-Fore
PCWI in use_2
PCWI pic_2
PCWI in use_1

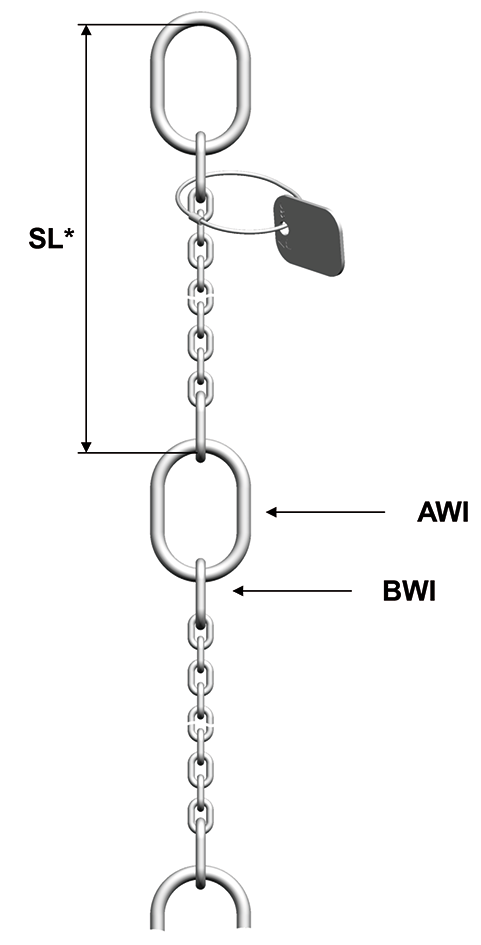

PCWI dwg
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton		 Master link Transition link Chain type Shackle jaw space
mm		 Length of master links/end links
mm		 Weight SL* AWI
mm		 BWI
mm		 CAD
11.6362515 PCWI 4-6/320 0.32 AWI 6 - WOX 4x12-5 18 60 0.39 6x60x35 -
11.6387067 PCWI 4-6/400 0.4 AWI 8 BWI 5 WOX 4x12 18 60 0.43 8x60x35 5x26x13
11.6387069 PCWI 5-6/560 0.56 AWI 8 BWI 7 WOX 5x15 25 60 0.62 8x60x35 7x36x16
11.6387071 PCWI 5-6/630 0.63 AWI 10 BWI 7 WOX 5x15 25 80 0.68 10x80x50 7x36x16
11.6387073 PCWI 6-6 0.85 AWI 10 BWI 7 WOX 6x18 25 80 0.9 10x80x50 7x36x16
11.6387075 PCWI 7-6 1.25 AWI 13 BWI 9 WOX 7x21 25 110 1.35 13x110x60 9x44x20
11.6387077 PCWI 8-6 1.6 AWI 13 BWI 10 WOX 8x24 32 110 1.7 13x110x60 10x44x20
11.6387079 PCWI 10-6 2.5 AWI 16 BWI 13 WOX 10x30 41 110 2.6 16x110x60 13x54x25
11.6387081 PCWI 13-6 3.5 AWI 18 BWI 16 WOX 13X39 56 135 4.5 18x135x75 16x70x34
11.6387082 PCWI 16-6 6.3 AWI 22 BWI 20 WOX 16x48 56 160 8 23x160x90 20x85x40
11.6330193 PCWI 20-5 8 AWI 26 BWI 22 WOX 20x60 76 180 21 27x180x100 23x115x50
11.6330196 PCWI 26-4+ 12 AWI 45 BWI 32 WOX 26x78 76 340 43.2 45x340x180 32x150x70
* SL consisting of 1 x AWI, 2 x BWI, WOX chain in standard length. PCWI 4/320 manufactured without transition links BWI.
** made to order.










Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
